Запчасти Case 1121G (55.100.020[01]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

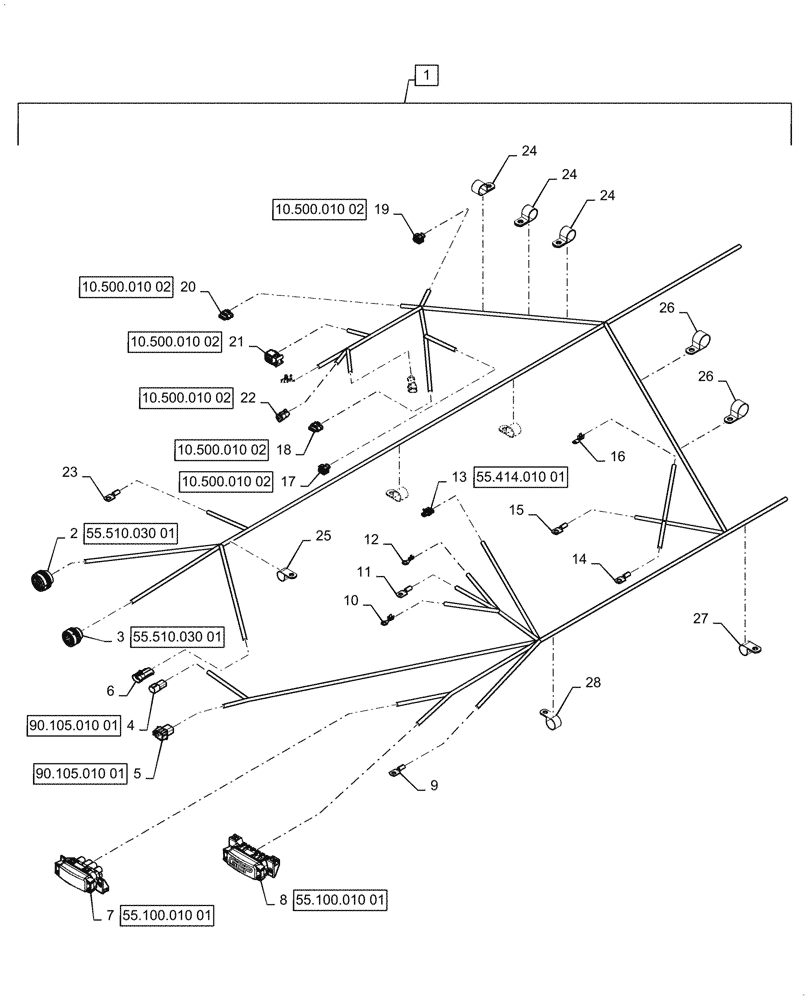

Схема запчастей Case 1121G - (55.100.020[01]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
55.100.010 01
3
10
22
13
1
6
26
28
2
9
21
4
15
11
18
19
5
23
17
12
14
27
24
24
25
7
24
26
20
8
16
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
90.105.010 01
90.105.010 01
55.510.030 01
55.510.030 01
55.414.010 01
55.100.010 01

Артикул

Название

Примечание

Количество

1

47892780

WIRE HARNESS

Engine & Chassis Harness, Incl 2 - 28

1шт.

2

87696948

MULTIPOLE CONNECTOR,Male, 29 Pole

Engine to Cab

1шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, Cavities, 1 - 17, 19, 21, 22, 25, 26, 28

23шт.

2

84807680

PLUG

Cavities, 18, 20, 23, 24, 27, 29

6шт.

3

87703931

ELEC CONNECTOR

Engine to Cab 2

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

14шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

Engine to 1021G Hood

1шт.

4

87695623

ELEC. TERMINAL PIN

Cavities, 1, 2

2шт.

4

87694145

ELEC CONNECTOR

Wedge Lock

1шт.

5

87700321

ELEC CONNECTOR,Female, 8 Cavities

Engine to Hood

1шт.

5

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

8шт.

5

84806919

PLUG,Wedge Lock

Wedge Lock

1шт.

6

87688788

MULTIPOLE CONNECTOR,Male, 2 Pole

High Pressure Switch 2

1шт.

6

87680656

CONTACT

2шт.

6

87688710

MULTIPOLE CONNECTOR,Female, 2 Pole

1шт.

6

87688862

LOCKING TAB

1шт.

7

84563565

FUSE HOLDER

Load Center 7

1шт.

7

84574203

TERMINAL

Cavities, 1 - 4, 9 - 12

8шт.

7

47563646

ELEC CONNECTOR

Cavity Plug, 5 - 8

4шт.

7

47406522

RELAY,4 Pin, 24V

2шт.

7

47563654

ELEC CONNECTOR

Cover

1шт.

8

84380518

FUSE BOX

Load Center 6

1шт.

8

47609837

TERMINAL

Cavities, 1 - 11, 13 - 15, 17 - 20, 23 - 26, 29 - 41, 43, 45 - 48

40шт.

8

87686742

PLUG

Cavities, 12, 16, 21, 22, 27, 28, 42, 44

8шт.

8

47563654

ELEC CONNECTOR

Cover

1шт.

8

84127702

FUSE,10A, Mini, Red

1шт.

8

84127704

FUSE,20A, Mini, Yellow

2шт.

8

84127705

FUSE,25A, Mini, White

1шт.

8

84127708

FUSE,30A, Mini, Green

1шт.

8

84152583

FUSE,7.5A, Mini, Brown

2шт.

8

84153830

FUSE,5A, Mini, Beige

1шт.

8

87312626

RELAY,24V

3шт.

8

87318986

RELAY,4 Pin, 24V

2шт.

9

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Cab Power from Rear Stud

1шт.

10

84186853

TERMINAL

Junction Stud of B+ in Rear

1шт.

11

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Junction Stud of B+ in Rear

1шт.

12

84253168

TERMINAL

Junction Stud of B+ in Rear

1шт.

13

82012083

WIRE CONNECTOR,Female

Grid Heater Control

1шт.

13

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

14

84401295

TERMINAL

Starter

1шт.

15

84401295

TERMINAL

Cab Power

1шт.

16

84426134

TERMINAL

Start Signal to Starter

1шт.

17

84532147

ELEC CONNECTOR,Female, 2 Cavities

SCR Downstream Temperature

1шт.

17

84130602

TERMINAL CONNECTOR

2шт.

18

84190317

WIRE CONNECTOR,Female, 5 Cavities

SCR Downstream NOX Sensor

1шт.

18

84190319

TERMINAL CONNECTOR

5шт.

19

84532147

ELEC CONNECTOR,Female, 2 Cavities

DOC Upstream Temperature

1шт.

19

84300195

TERMINAL

2шт.

20

84190317

WIRE CONNECTOR,Female, 5 Cavities

DOC Upstream NOX Sensor

1шт.

20

84190319

TERMINAL CONNECTOR

Cavities, 1 - 4

4шт.

20

87709655

BLANK-OFF PLUG

Cavity Plug, 5

1шт.

21

84146686

ELEC CONNECTOR,Female, 4 Cavities

NH3 Sensor

1шт.

21

84152584

TERMINAL,Tin, 0.50 - 1.00mm

4шт.

22

87695580

ELEC CONNECTOR,Female, 3 Pole

Controller Area Network

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Cavities, A, B

2шт.

22

84068583

PLUG,12 - 16 Ga, White

Cavity, C

1шт.

22

84058092

CONTACT HOUSING,120 Ohm Resistor

1шт.

22

84058194

PLUG

Wedge Lock

1шт.

22

84322203

CLIP

Mounting Clip

1шт.

23

84401295

TERMINAL

Cab Power

1шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Insulated Mounting Clamp

3шт.

25

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

Insulated Mounting Clamp

1шт.

26

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

Insulated Mounting Clamp

2шт.

27

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

Insulated Mounting Clamp

1шт.

28

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

Insulated Mounting Clamp

1шт.

Выбрано товаров: 65
