Запчасти Case 1121G (55.100.010[01]) - ENGINE & REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

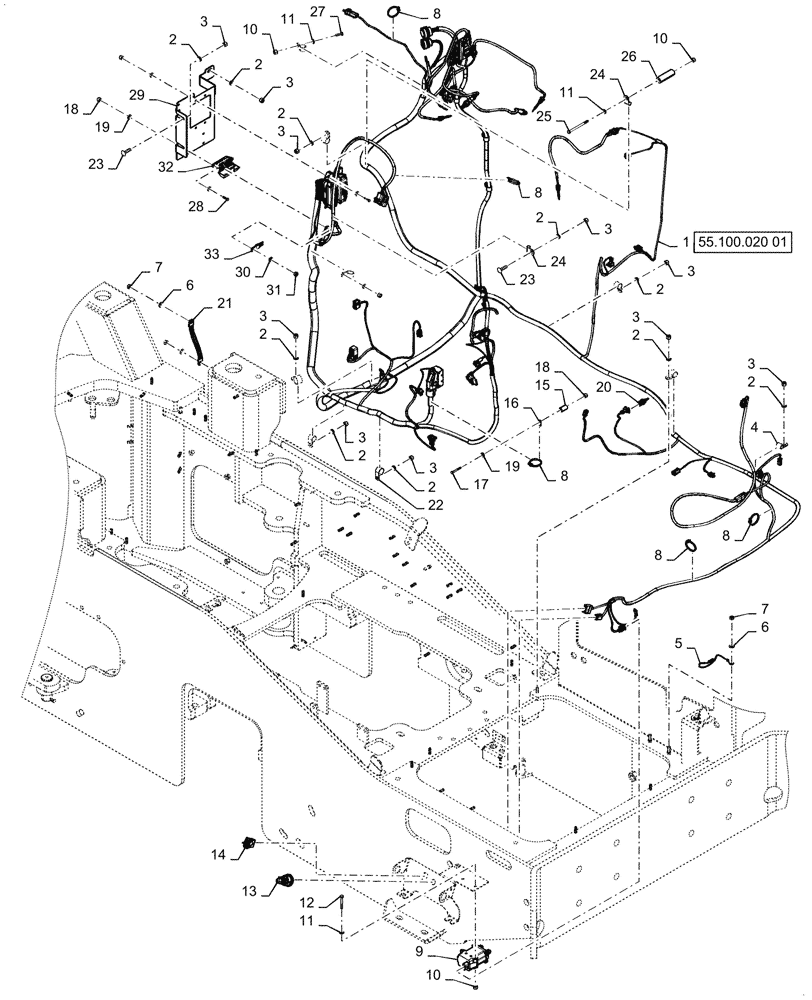

Схема запчастей Case 1121G - (55.100.010[01]) - ENGINE & REAR CHASSIS HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS
55.100.020 01
26
32
4
3
24
3
21
14
2
17
8
6
3
25
22
12
2
13
3
2
2
8
8
31
3
3
27
2
10
33
30
20
5
6
16
19
23
11
2
2
8
23
18
10
7
2
2
3
2
29
8
10
1
18
3
19
24
11
9
3
7
28
11
15
3

Артикул

Название

Примечание

Количество

1

47892780

WIRE HARNESS

Engine & Rear Chassis

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

4

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

5

84559444

GROUND CABLE

1шт.

6

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

7

253347A1

NUT,Hex, M10 x 1.5

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

9

47686204

RELAY

Battery Disconnect, 12V - 24V, 250A

1шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

13

47729268

ROTARY SWITCH

Disconnect

1шт.

14

47750058

ROCKER SWITCH

Hood Lift

1шт.

15

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

1шт.

16

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

17

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

20

84574743

SENSOR

Temperature

1шт.

21

L126051

GROUND STRAP

1шт.

22

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

1шт.

23

711-10040

CARRIAGE BOLT,Short NK, M10 x 40, Cl8.8, Full Thd

1шт.

24

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

25

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

1шт.

26

404634A1

SPACER

1шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

28

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

29

47648627

BRACKET

Relay

1шт.

30

892-11008

LOCK WASHER,8mm ID

1шт.

31

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

32

440038A1

JUNCTION BLOCK

1шт.

33

440572A1

FUSE,100A, Megaval

1шт.

Выбрано товаров: 33
