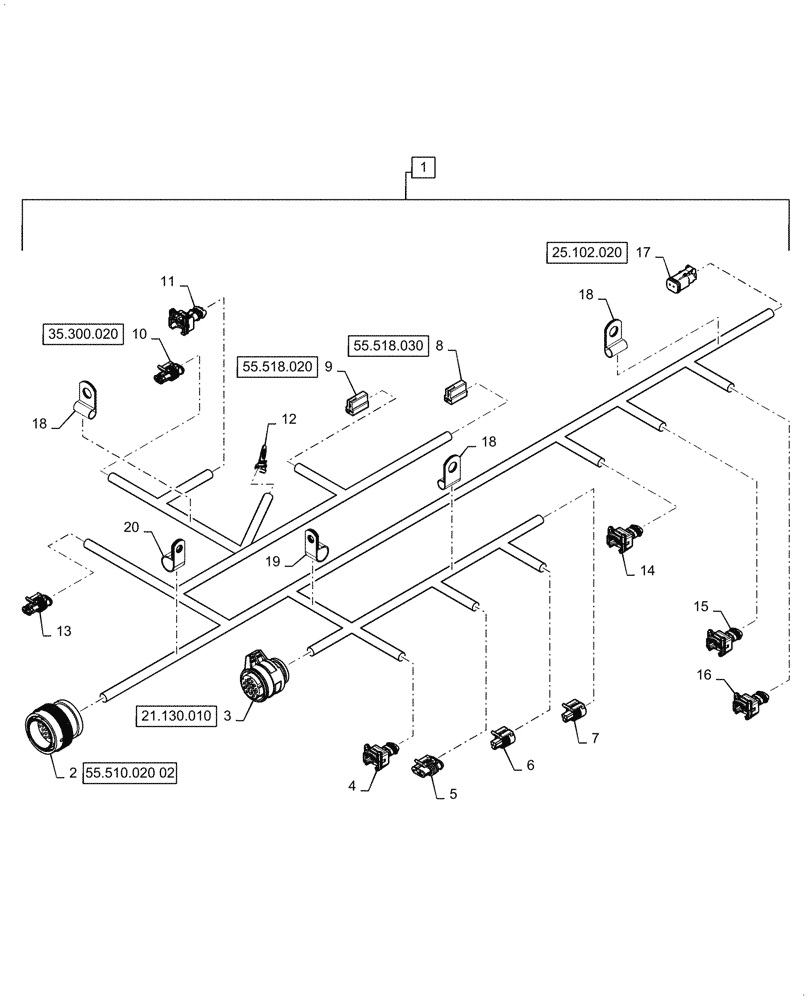

Запчасти Case 1121G (55.024.020) - TRANSMISSION WIRING HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
47988615
WIRE HARNESS
Assembly, Incl 2 - 20
1шт.
2
87696949
ELEC CONNECTOR
Transmission to Cab
1шт.
2
87702681
TERMINAL
Gold Plated Pins Only, Cavities, 7 - 9, 13, 30
5шт.
2
87690510
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
Cavities, 1 - 6, 10 - 12, 14, 16 - 24, 26 - 29, 31
24шт.
2
84068583
PLUG,12 - 16 Ga, White
Cavities, 15, 25
2шт.
3
47669071
ELEC CONNECTOR
Transmission Controller onTransmission
1шт.
3
47703737
ELEC CONNECTOR
Cavities, 10 - 16
7шт.
4
84364854
ELEC CONNECTOR
Gear Oil Temperature
1шт.
4
87702681
TERMINAL
2шт.
5
84062580
CONNECTOR, ELEC
Speed Sensor Gear Transmission
1шт.
5
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
3шт.
6
84078681
WIRE CONNECTOR,Female
Redundant Brake Switch 1
1шт.
6
87690510
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
3шт.
7
84078681
WIRE CONNECTOR,Female
Redundant Brake Switch 2
1шт.
7
87690510
ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2
3шт.
8
84015523
WIRE CONNECTOR,Female
Rear Washer Motor
1шт.
9
84015523
WIRE CONNECTOR,Female
Front Washer Motor
1шт.
10
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
3шт.
11
84607243
ELEC CONNECTOR,Female, 2 Cavities
Hydraulic Oil Temperature
1шт.
11
87702681
TERMINAL
2шт.
12
84140737
TERMINAL CONNECTOR
Ground
1шт.
13
82012085
TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm
2шт.
14
84364854
ELEC CONNECTOR
Engine Speed Sensor
1шт.
14
87702681
TERMINAL
2шт.
15
84364854
ELEC CONNECTOR
Turbine Speed Sensor
1шт.
15
87702681
TERMINAL
2шт.
16
84364854
ELEC CONNECTOR
Middle Wheel Chain Speed Sensor
1шт.
16
87702681
TERMINAL
2шт.
17
87695582
ELEC CONNECTOR,Female, 2 Pole
Differential Lock Solenoid
1шт.
18
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
3шт.
19
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
1шт.
20
515-24190
CLAMP,3/4", Insul, 7/16" Bolt
1шт.
Выбрано товаров: 39
