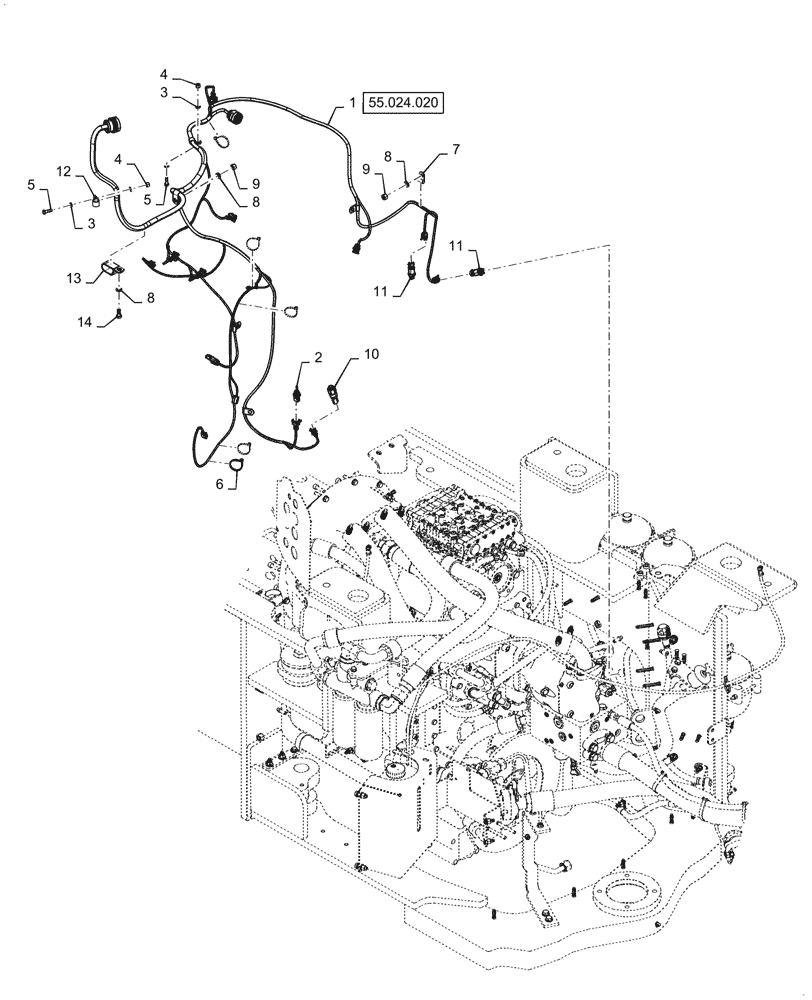

Запчасти Case 1121G (55.024.010) - TRANSMISSION WIRING HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47988615

WIRE HARNESS

Transmission

1шт.

2

84574743

SENSOR

Temperature

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

7

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

84373730

PRESSURE SWITCH

3.4 BAR

1шт.

11

84409605

SENSOR

Pressure

2шт.

12

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

13

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

14

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.
