Запчасти Case 1121G (50.200.040) - VAR - 782440 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

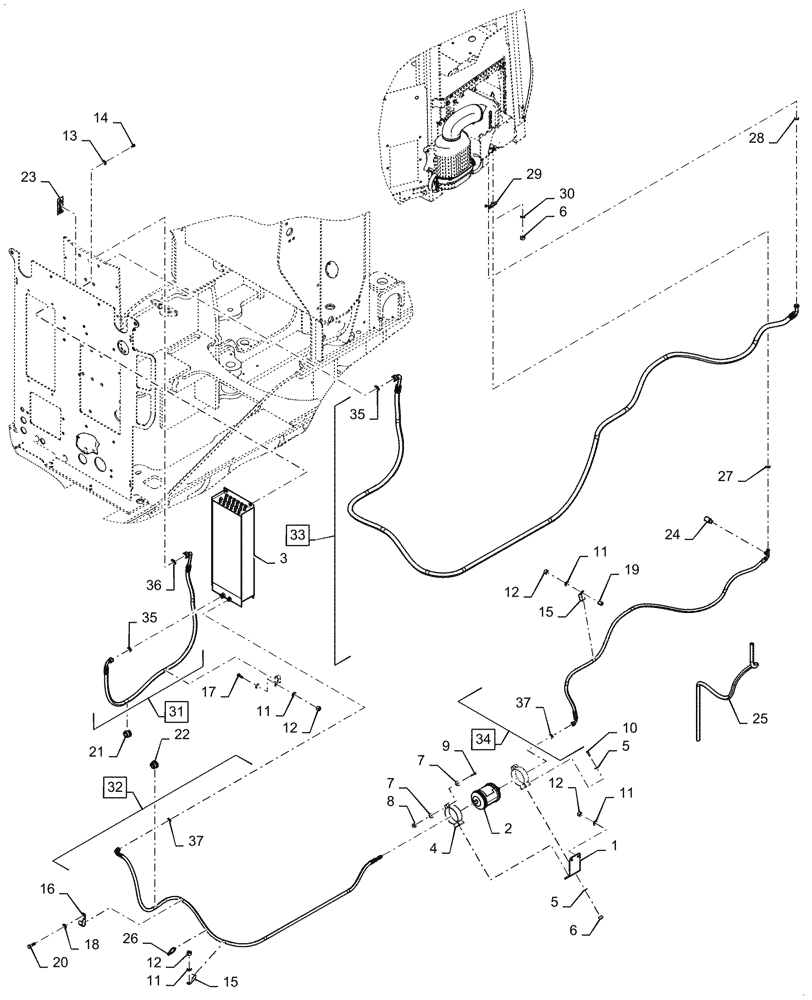

Схема запчастей Case 1121G - (50.200.040) - VAR - 782440 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL
36
11
11
33
17
25
16
6
5
15
32
8
11
13
29
35
19
27
30
12
11
37
15
10
9
12
24
34
20
28
37
2
22
31
14
12
18
4
26
23
12
7
6
5
21
1
7
35
3

Артикул

Название

Примечание

Количество

1

84332682

BRACKET

Receiver / Dryer

1шт.

2

47821526

RECEIVER-DRYER

Horizontal

1шт.

3

8500878

CONDENSER

A/C

1шт.

4

433723A1

CLAMP

2шт.

5

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

13

892-11008

LOCK WASHER,8mm ID

4шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

15

R54363

CLAMP

7шт.

16

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

18

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

19

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

20

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

21

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

1шт.

22

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

23

48014534

WARNING DECAL,REFRIGERANT HFC134A ONLY

1шт.

24

284273A2

SWITCH, A/C HIGH PRE

High Pressure

1шт.

25

48067525

HVAC Drain, 1350mm L

TUBE

1шт.

26

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

27

47624200

WASHER

1шт.

28

47624208

SEALING WASHER

1шт.

29

47689567

PLATE

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

31

47912130

HOSE

Compressor to Condenser, 1717mm L, Incl 35, 36

1шт.

32

84406701

HOSE ASSY.

Condenser to Dryer, 2333mm L, Incl 37

1шт.

33

48080636

Cab to Compressor, Incl 35

HOSE

1шт.

34

48080637

Dryer to Cab, 2162mm L, Incl 37

HOSE

1шт.

35

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

2шт.

36

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

1шт.

37

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

Выбрано товаров: 37
