Запчасти Case 1121G (50.100.030) - CAB HEATER HOSES (50) - CAB CLIMATE CONTROL

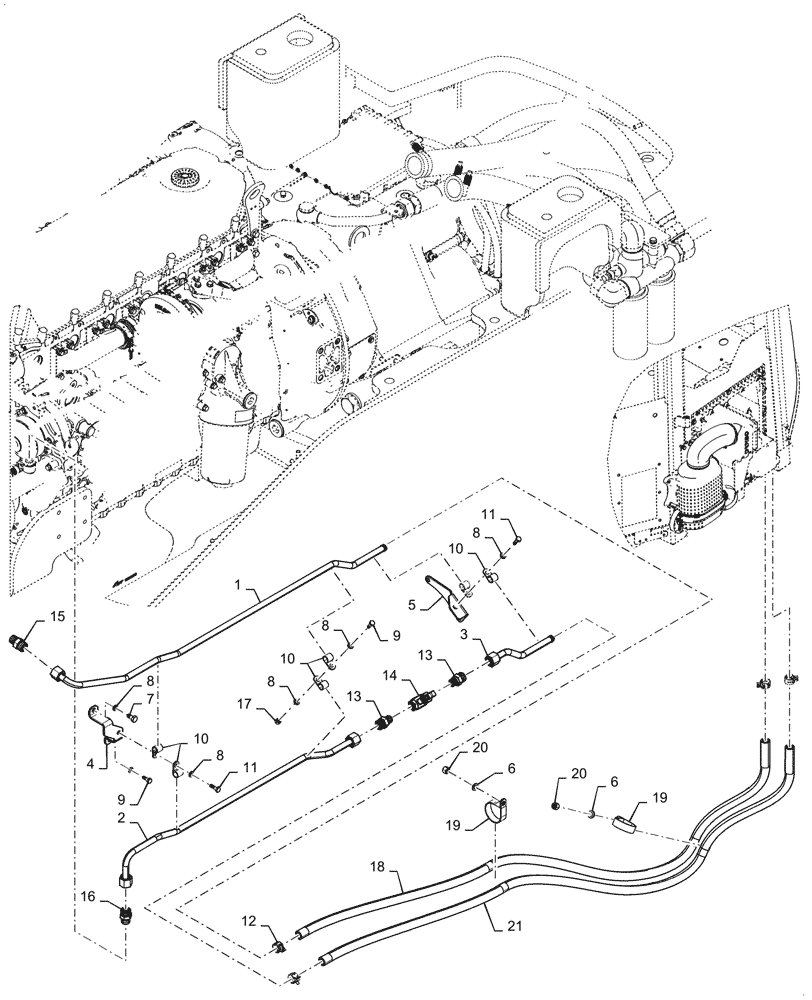

Схема запчастей Case 1121G - (50.100.030) - CAB HEATER HOSES (50) - CAB CLIMATE CONTROL
2
4
5
3
12
20
21
6
9
13
8
11
16
8
19
1
15
10
10
17
10
8
18
19
14
9
8
6
7
11
20
13
8

Артикул

Название

Примечание

Количество

1

47636533

TUBE

Heater Supply

1шт.

2

47636535

TUBE

Heater Return

1шт.

3

47636537

TUBE

Heater Return

1шт.

4

84198593

BRACKET

Heater Tube Front Support

1шт.

5

84317573

BRACKET

Heater Tube Support

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

7

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

6шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

12

1954736C1

HOSE CLAMP,#24

4шт.

13

87351379

HYD CONNECTOR

2шт.

14

84294442

SHUT-OFF VALVE

1шт.

15

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

1шт.

16

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

18

436520A1

HEATER HOSE,15.88 mm ID x 1778.00 mm

High Temperature Supply

1шт.

19

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

47575171

HEATER HOSE

High Temperature Return

1шт.

Выбрано товаров: 21
