(41.216.010[03]) - STEERING CYLINDER LINES AND INSTALLATION

Запчасти Case 1121G (41.216.010[03]) - STEERING CYLINDER LINES AND INSTALLATION (41) - STEERING

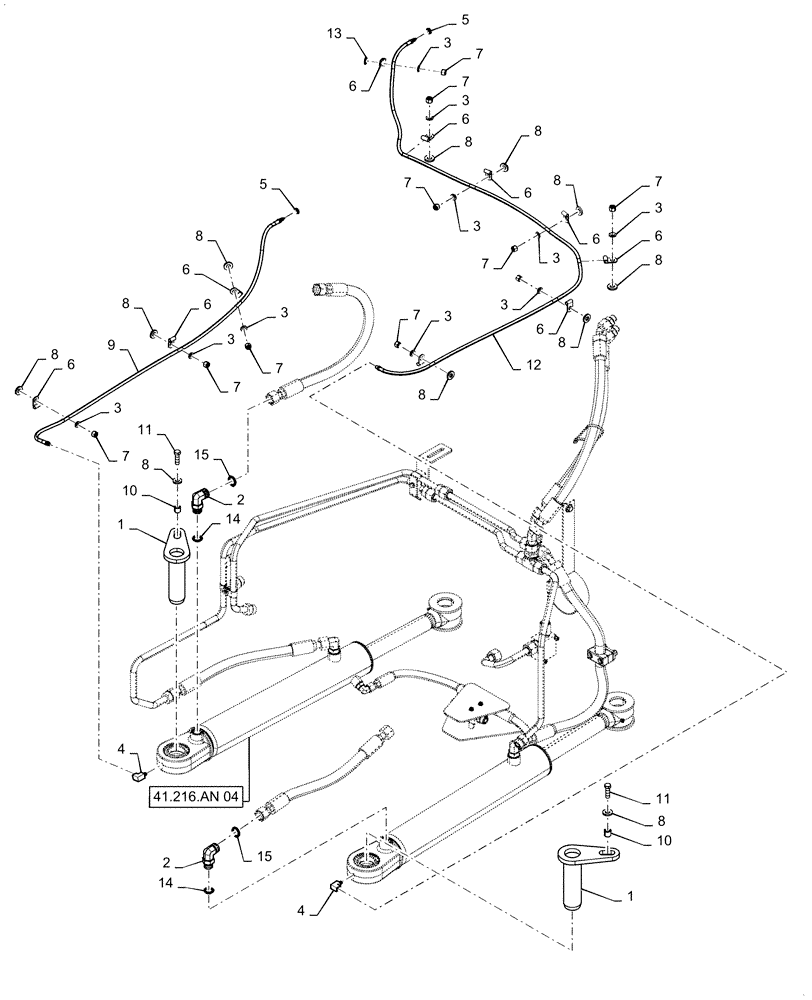

Схема запчастей Case 1121G - (41.216.010[03]) - STEERING CYLINDER LINES AND INSTALLATION (41) - STEERING
41.216.an 04
3
2
7
7
7
10
1
6
8
2
12
9
7
7
4
8
6
3
3
6
14
13
3
6
11
14
6
8
8
7
3
1
5
3
7
6
5
4
7
6
8
8
11
10
8
8
6
3
15
8
3
15
8
7
8
3
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87380685

PIN,50.76mm OD x 184mm L

Steering Cylinder

2шт.

2

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

4

328082A1

ELBOW

90 Degree, 1/8 -27 NPT

2шт.

5

F53473

LOCK NUT,1/8-27 NPSM

2шт.

6

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

10шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

11шт.

9

84483026

HOSE,4.83mm ID x 1355mm L

Grease, LH

1шт.

10

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

12

84483025

HOSE,3.56mm ID x 2378mm L

Grease, RH

1шт.

13

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

8шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.
