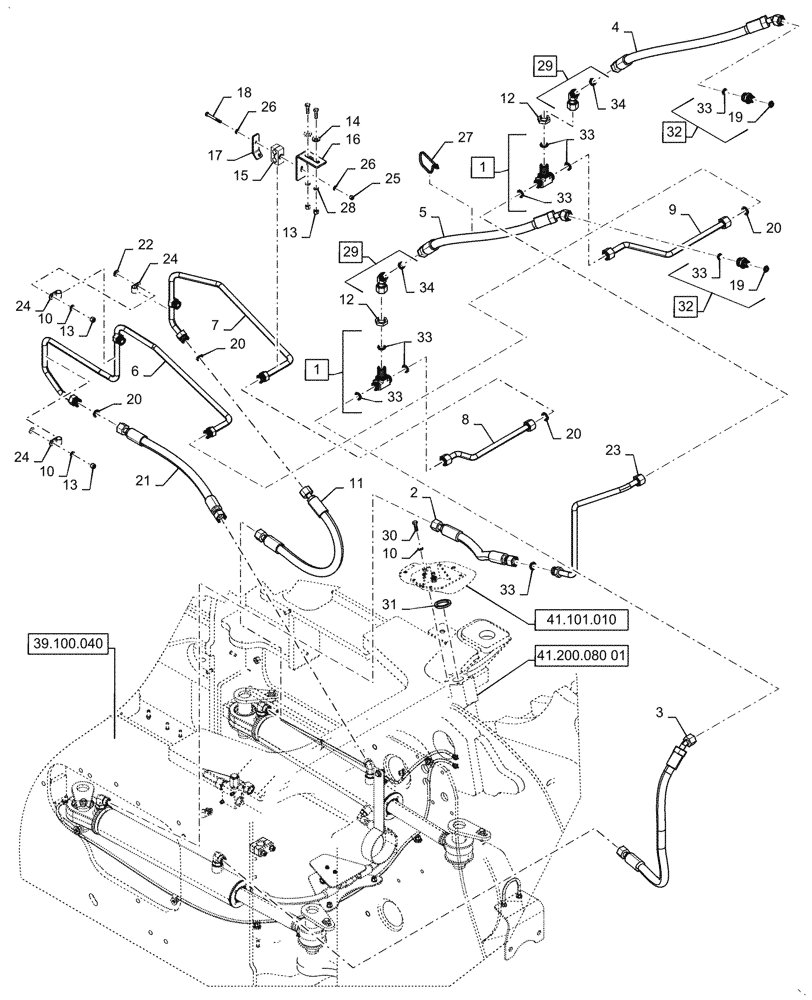

Запчасти Case 1121G (41.216.010[01]) - STEERING CYLINDER LINES AND INSTALLATION (41) - STEERING

1

86900241

TEE,1-7/16"-12 ORFS, Bulkhead

Incl 33, qty 3

2шт.

2

84491900

HOSE,19.05mm ID x 512.6mm L, SAE 100R12

Cylinder Bore, RH

1шт.

3

84491906

HOSE,19.05mm ID x 898mm L, SAE 100R17

Cylinder Rod, RH

1шт.

4

84576121

HOSE ASSY.,19.05mm ID x 772mm L, SAE 100R12

Stering, LH

1шт.

5

84576122

HOSE ASSY.,19.05mm ID x 696mm L, SAE 100R12

Orbitrol to Cylinder

1шт.

6

84576163

RIGID TUBE

Steering Rod, LH

1шт.

7

84576161

RIGID TUBE

Steering Base, LH

1шт.

8

84311824

HYD TUBE

Steering Base LH

1шт.

9

84398363

HYD TUBE

Steering Rod, LH

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

11

84491907

HOSE,19.05mm ID x 795.4mm L, SAE 100R12

Cylinder Bore

1шт.

12

701-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

15

87000140

CLAMP,Tube, 19.05mm

Hydraulic Tube

1шт.

16

84539846

BRACKET

'L' Bracket, Formed Bar

1шт.

17

84468964

BRACKET

Front Brake Hose Support

1шт.

18

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

21

84491909

HOSE,19.05mm ID x 613mm L, SAE 100R12

Cylinder Rod, LH

1шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

84576159

RIGID TUBE

Steering Base, RH

1шт.

24

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

3шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

29

84214051

45 ELBOW,1-3/16"-12 ORFS x 14mm

Incl 34

2шт.

30

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

76043957

GASKET

Steering Orbitrol

1шт.

32

86579681

HYD CONNECTOR,1-3/16"-12 ORFS x M22 x 1.5 ORB

Incl 19, 33

2шт.

33

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

18шт.

34

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.
