(41.206.010[01]) - VAR - 482913, 782442 - PUMP, ASSY, STEERING

Запчасти Case 1121G (41.206.010[01]) - VAR - 482913, 782442 - PUMP, ASSY, STEERING (41) - STEERING

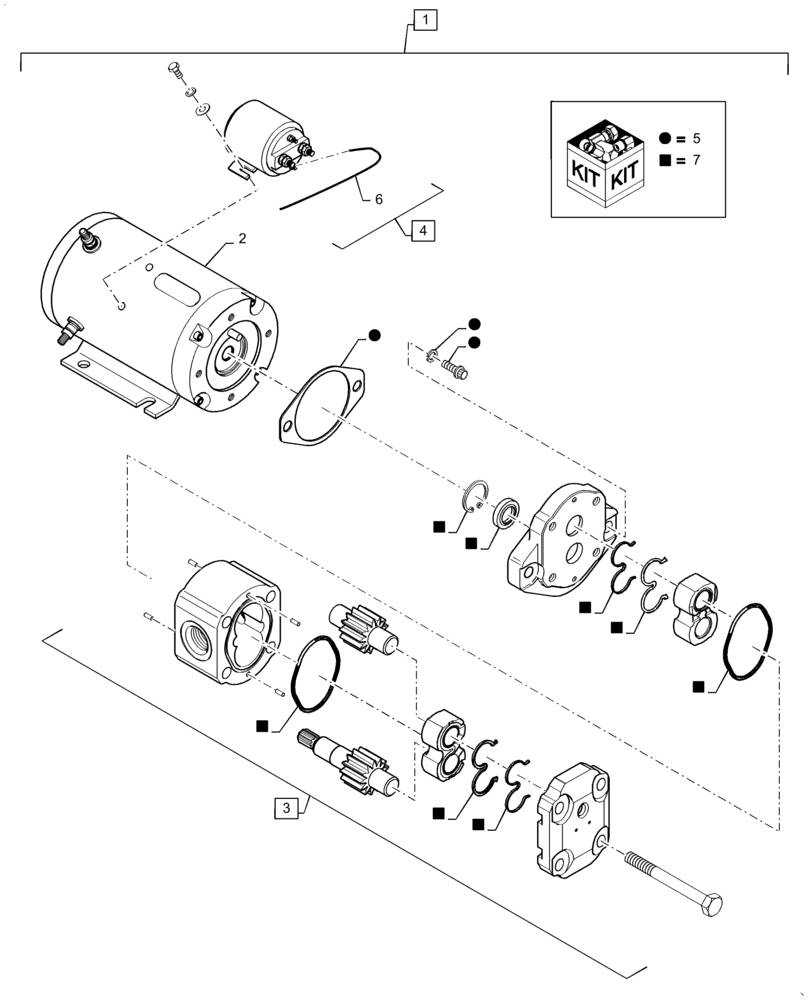

Схема запчастей Case 1121G - (41.206.010[01]) - VAR - 482913, 782442 - PUMP, ASSY, STEERING (41) - STEERING
7
7
3
7
5
7
5
1
5
2
7
5
4
7
7
7
7
5
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87581480

ELECTRIC PUMP

Assembly, Emergency Steering, EU, Incl 2 - 7

1шт.

2

84428758

ELECTRIC MOTOR

Emergency Steering System, EU

1шт.

3

8605158

PUMP, HYDRAULIC

Emergency Steering, EU, Incl 7

1шт.

4

8605159

KIT

Starting Switch, Incl 6

1шт.

5

84428759

SERVICE KIT

Pump Mounting

1шт.

6

84428760

WIRE

Grounding

1шт.

7

8605162

SEAL KIT

Pump Assembly

1шт.

Выбрано товаров: 0
