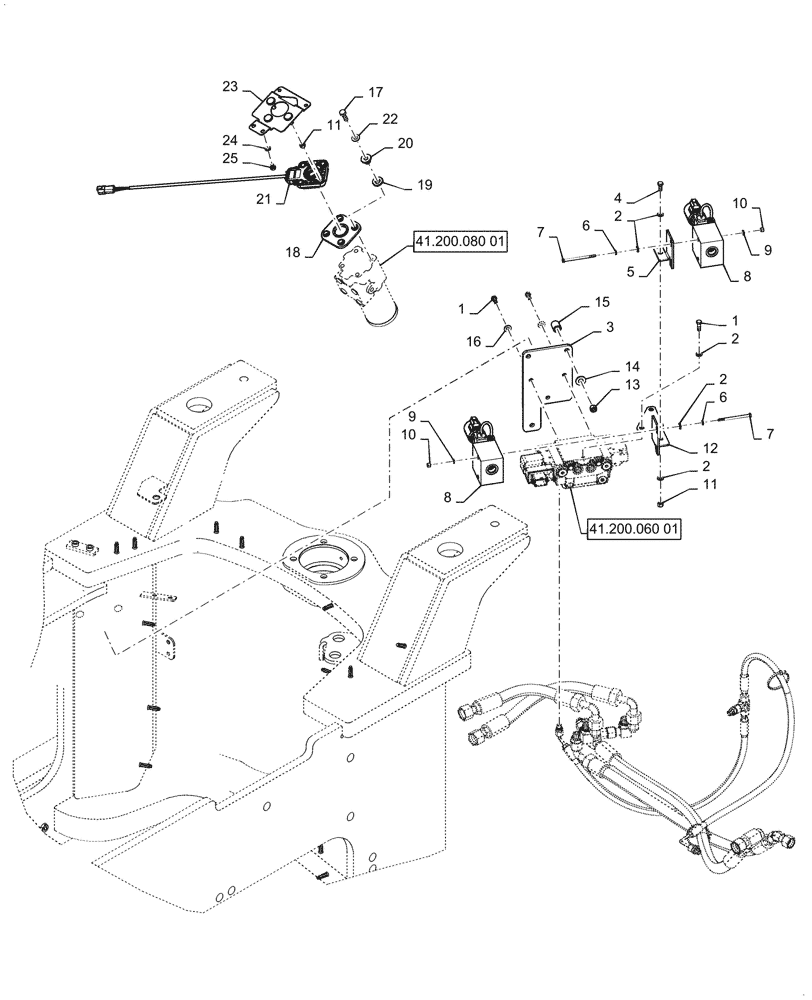

Запчасти Case 1121G (41.200.060[02]) - VAR - 482913 - STANDARD, STEERING - EH W/ JOYSTICK (41) - STEERING

1

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

2

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

3

47915621

BRACKET

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

47915618

BRACKET

1шт.

6

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

7

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

4шт.

8

47908617

VALVE

Cutoff

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

832-10406

NUT,M6 x 1, Cl 8

4шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

12

47915616

BRACKET

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

895-15012

WASHER,M12 x 28 x 2.5

3шт.

15

450492R1

SPACER,1/2" Pipe x 1"

3шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

18

84553550

ISOLATOR

Orbitrol

1шт.

19

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

20

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

21

47786983

SENSOR

Steering Angle

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

48037668

BRACKET

Steering Angle Sensor

1шт.

24

86639309

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

25

300380

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.
