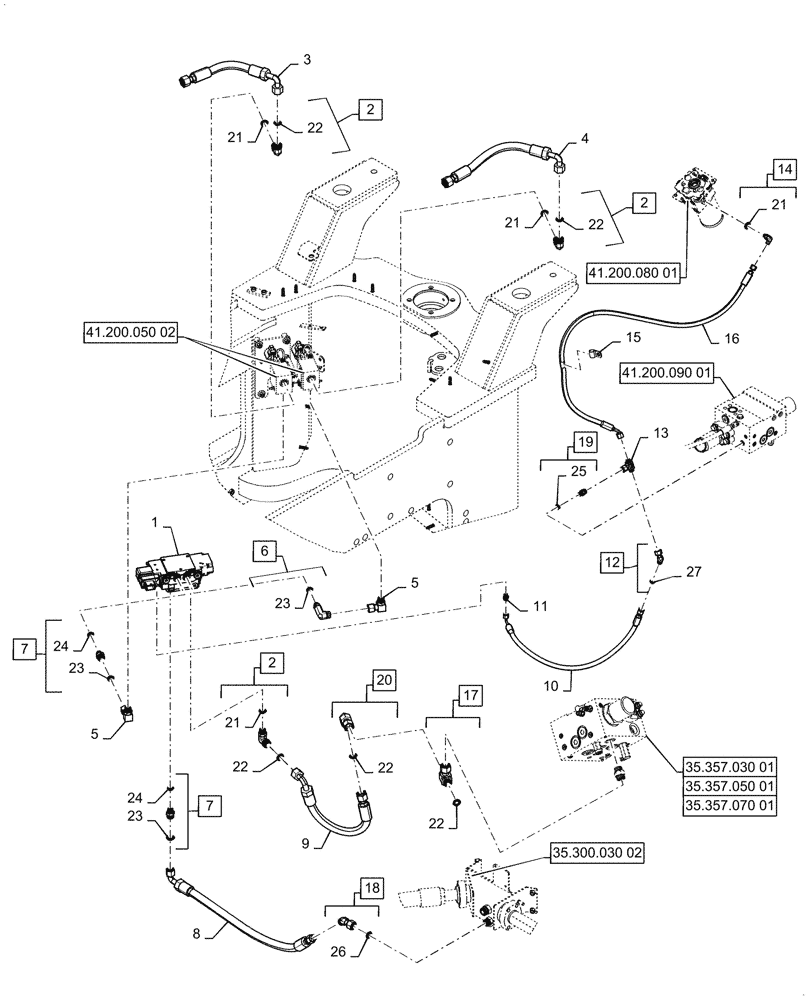

Запчасти Case 1121G (41.200.050[01]) - VAR - 482930 - STANDARD, STEERING - W/ JOYSTICK (41) - STEERING

1

47908613

STEERING VALVE

1шт.

2

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 21, 22

3шт.

3

48022714

HOSE

Steering LH

1шт.

4

48022715

HOSE

Steering RH

1шт.

5

47915354

FITTING

2шт.

6

47737957

90 ELBOW

Incl 23

1шт.

7

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

Incl 23, 24

2шт.

8

47921412

HOSE

to Return Manifold

1шт.

9

47921410

HOSE

to Priority Valve

1шт.

10

47921411

HOSE

Joystick to Priority Valve

1шт.

11

48020061

ORIFICE

1шт.

12

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 27

1шт.

13

47908251

VALVE

Shuttle Tee

1шт.

14

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 21

1шт.

15

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

16

47921409

HOSE

Orbitrol to Joystick Valve

1шт.

17

701-419

FITTING,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 22

1шт.

18

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl 26

1шт.

19

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 25

1шт.

20

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 22

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

23

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

24

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

25

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
