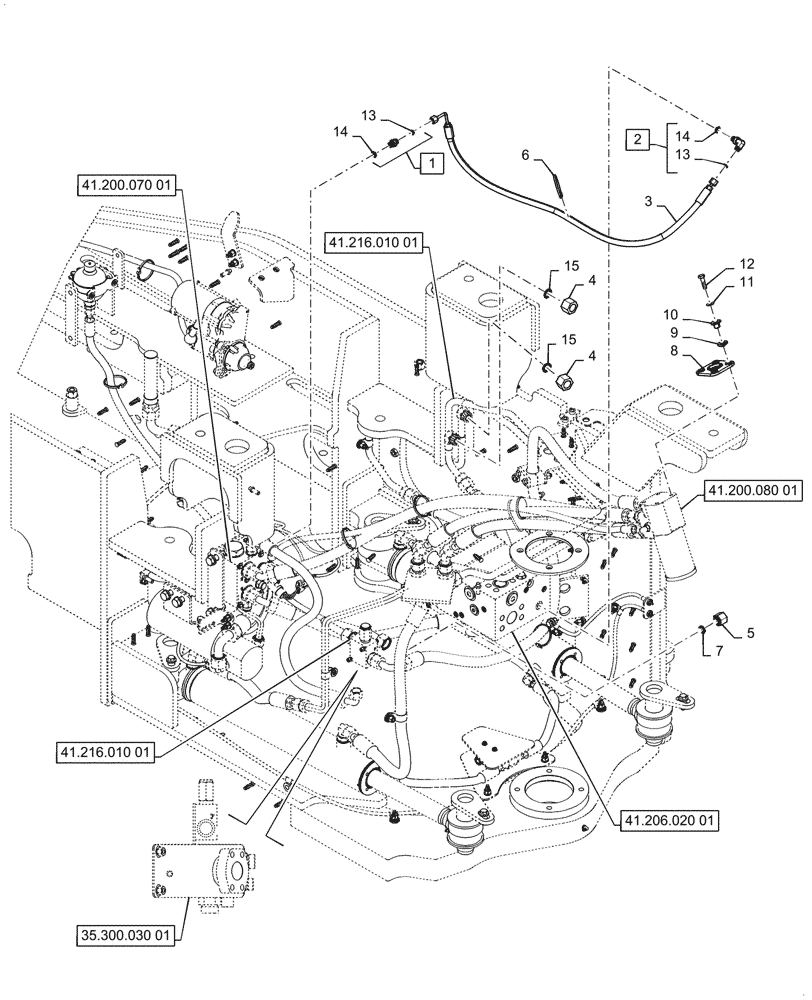

Запчасти Case 1121G (41.200.040[01]) - VAR - 782442 - ELECTRIC SYSTEM CONTROL, STEERING ARM, STEERING - W/O JOYSTICK (41) - STEERING

1

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 13 - 14

1шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 13 - 14

1шт.

3

84377156

HOSE ASSY.

Aux Steering Load Sense

1шт.

4

701-907

CAP,1-3/16" - 12

2шт.

5

701-906

CAP,1" - 14

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

84553550

ISOLATOR

1шт.

9

84328905

RUBBER BUSHING,15mm ID x 19.5mm OD x 7.5mm L

4шт.

10

84328904

GUIDE BUSHING,10mm ID x 26mm OD x 18.5mm L

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

14

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
