Запчасти Case 1121G (41.200.010[01]) - VAR - 782441, 482930 - STANDARD STEERING HYDRAULIC LINES - W/ JOYSTICK (41) - STEERING

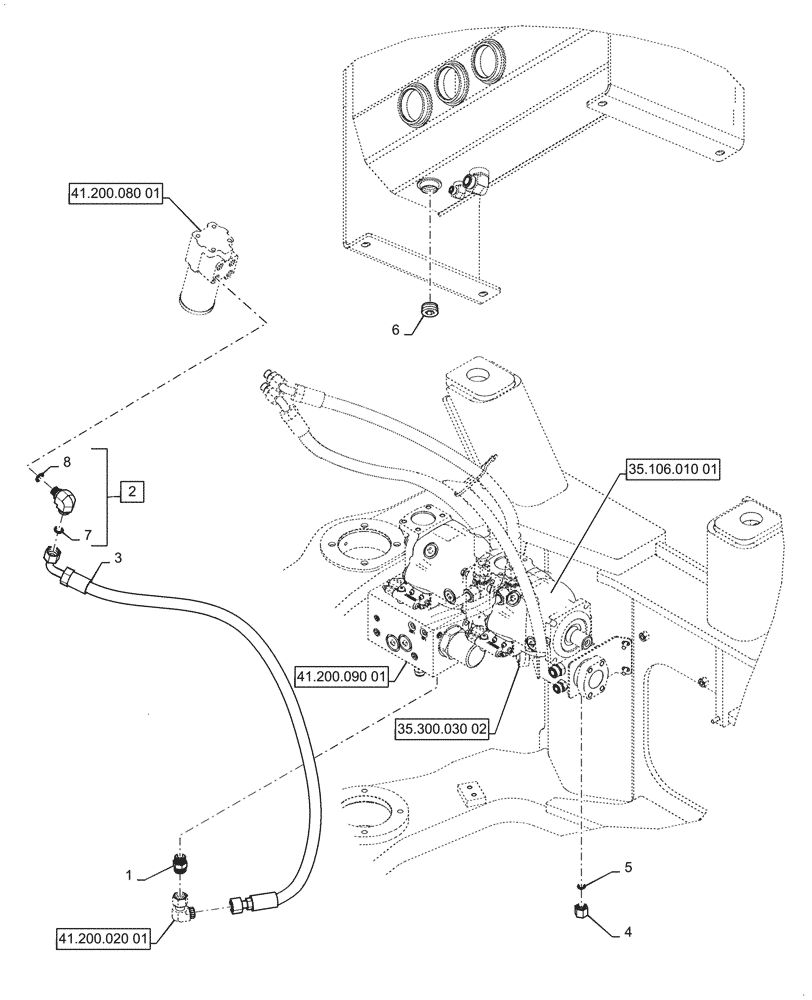

Схема запчастей Case 1121G - (41.200.010[01]) - VAR - 782441, 482930 - STANDARD STEERING HYDRAULIC LINES - W/ JOYSTICK (41) - STEERING
41.200.020 01
3
5
6
8
1
2
4
7
35.106.010 01
41.200.080 01
35.300.030 02
41.200.090 01

Артикул

Название

Примечание

Количество

1

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

1шт.

2

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 7, 8

1шт.

3

47737311

HOSE

Steering Supply

1шт.

4

701-906

CAP,1" - 14

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

7

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 8
