(39.140.030) - VAR - 782895 - REAR COUNTERWEIGHT, HEAVY DUTY

Запчасти Case 1121G (39.140.030) - VAR - 782895 - REAR COUNTERWEIGHT, HEAVY DUTY (39) - FRAMES AND BALLASTING

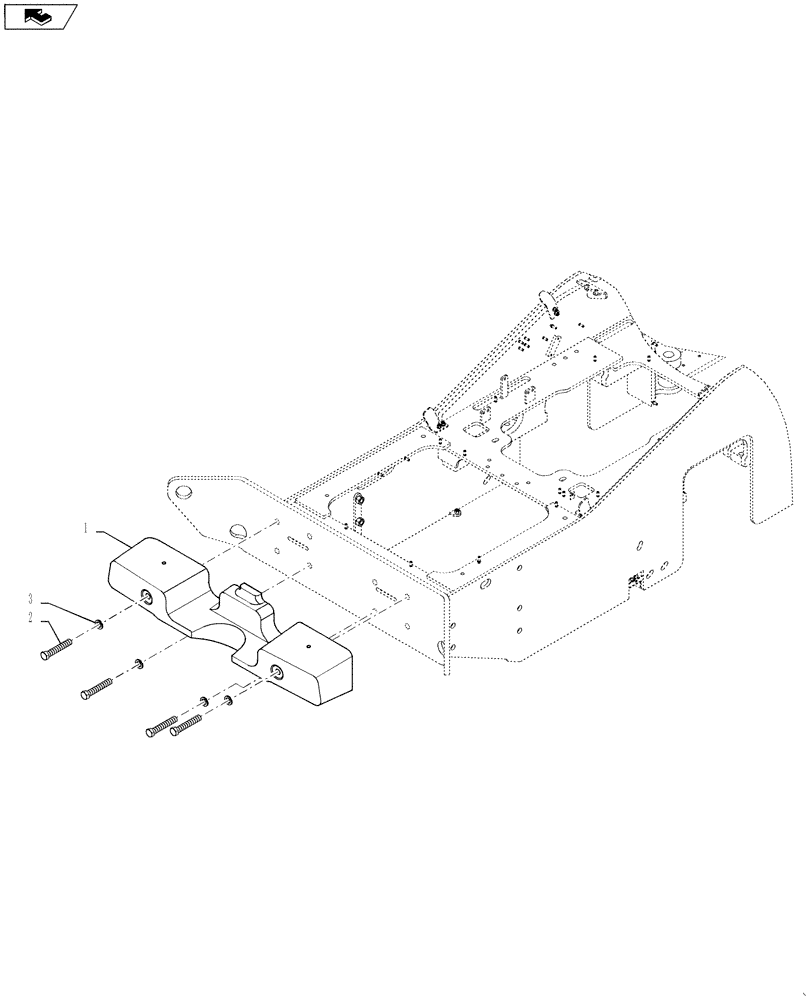

Схема запчастей Case 1121G - (39.140.030) - VAR - 782895 - REAR COUNTERWEIGHT, HEAVY DUTY (39) - FRAMES AND BALLASTING
home
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84374037

COUNTERWEIGHT

Rear, 1029 Lbs

1шт.

2

827-24160

BOLT,Hex, M24 x 3 x 160mm, Cl 10.9

4шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.
