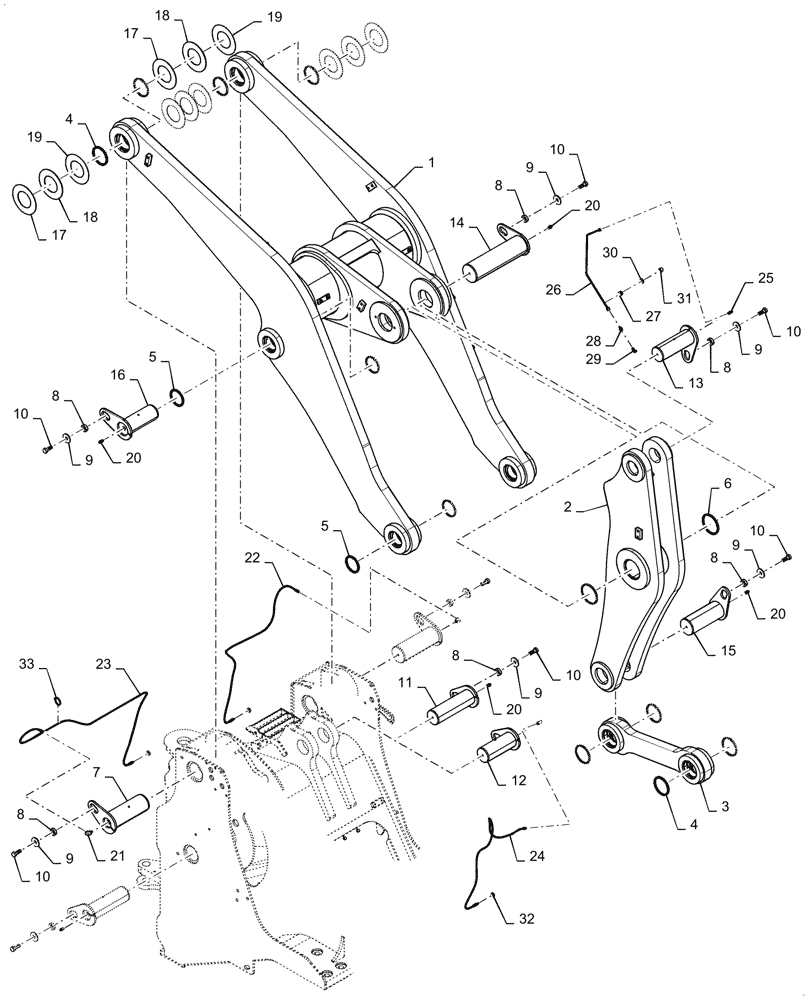

Запчасти Case 1121G (39.105.010) - LIFT ARM INSTALLATION, Z-BAR & XR (39) - FRAMES AND BALLASTING

1

47641838

LIFT ARM

Power Tan, Z-Bar

1шт.

1

47646829

LIFT ARM

Power Tan, XR

1шт.

1

47729562

LIFT ARM

NH Yellow, Z-Bar

1шт.

2

47780050

BELLCRANK

1шт.

3

84413831

LINK

Dump Assembly

1шт.

4

84238525

SEALING RING

114.3mm

8шт.

5

S108245

WIPER SEAL

101.6mm

8шт.

6

84278876

RUBBER RING

127.0mm

2шт.

7

84284299

PIN,114.3mm OD x 329mm L

2шт.

8

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

10шт.

9

87355604

WASHER

10шт.

10

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

10шт.

11

84284302

PIN,101.6mm OD x 343mm L

2шт.

12

84284304

PIN,101.6mm OD x 266mm L

1шт.

13

84315431

PIN,101.6mm OD x 295mm L

1шт.

14

84284297

PIN,127mm OD x 472mm L

1шт.

15

84296692

PIN,114.3mm OD x 295mm L

1шт.

16

84293834

PIN,101.6mm OD x 276mm L

2шт.

17

84277334

SHIM

115.8mm ID x 210mm OD x 1.0mm thk

1шт.

18

84278979

SHIM

115.8mm ID x 210mm OD x 3.5mm thk

1шт.

19

84278980

SHIM

115.8mm ID x 210mm OD x 2.5mm thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

21

328082A1

ELBOW

3шт.

22

84293478

FLEXIBLE HOSE,4.83mm ID x 1682mm L

Grease

1шт.

23

84293481

FLEXIBLE HOSE,4.83mm ID x 2294mm L

Grease

1шт.

24

318012A1

FLEXIBLE HOSE

Grease

1шт.

25

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

1шт.

26

84293483

RIGID TUBE

Grease

1шт.

27

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

28

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

1шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

32

F53473

LOCK NUT,1/8-27 NPSM

3шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

10шт.
