Запчасти Case 1121G (35.733.010[08]) - VAR - 734045, 734046 - NO AXLE COOLER INSTALLATION (35) - HYDRAULIC SYSTEMS

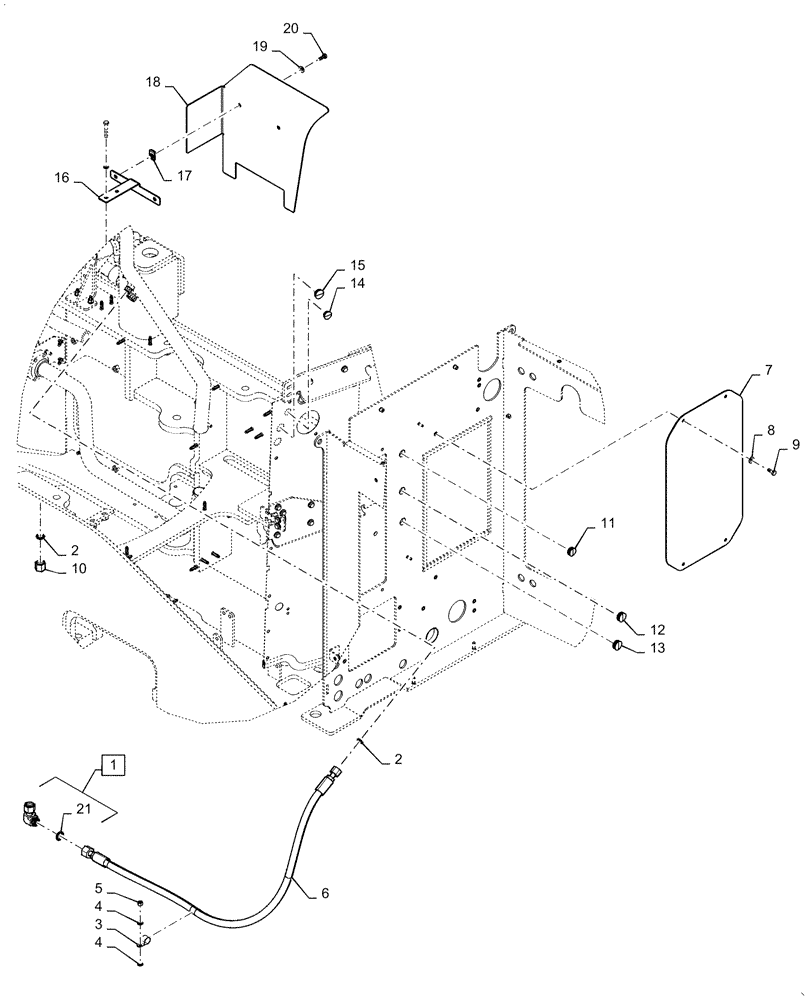

Схема запчастей Case 1121G - (35.733.010[08]) - VAR - 734045, 734046 - NO AXLE COOLER INSTALLATION (35) - HYDRAULIC SYSTEMS
2
12
18
15
14
3
21
11
2
17
10
5
8
16
13
7
1
4
9
19
6
20
4

Артикул

Название

Примечание

Количество

1

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 21

1шт.

2

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

3

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

6

84426368

HOSE ASSY.

Brake To Return

1шт.

7

84409428

COVER PLATE

Axle Cooler Cover

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

9

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

9840576

CAP,1" - 14 ORFS

1шт.

11

84539402

PLUG

1-1/8 IN I.D.

1шт.

12

87695421

PLASTIC PLUG,1.38" OD

1.25 IN

2шт.

13

87019953

PLUG

2.5 IN

1шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

15

353-422

PLUG,Dome, 1.250" hole, Nylon

2шт.

16

47605525

BRACKET

Trans Filter Cover

1шт.

17

833-40310

NUT,M10, U

2шт.

18

47605523

COVER

Trans Filter

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

Выбрано товаров: 21
