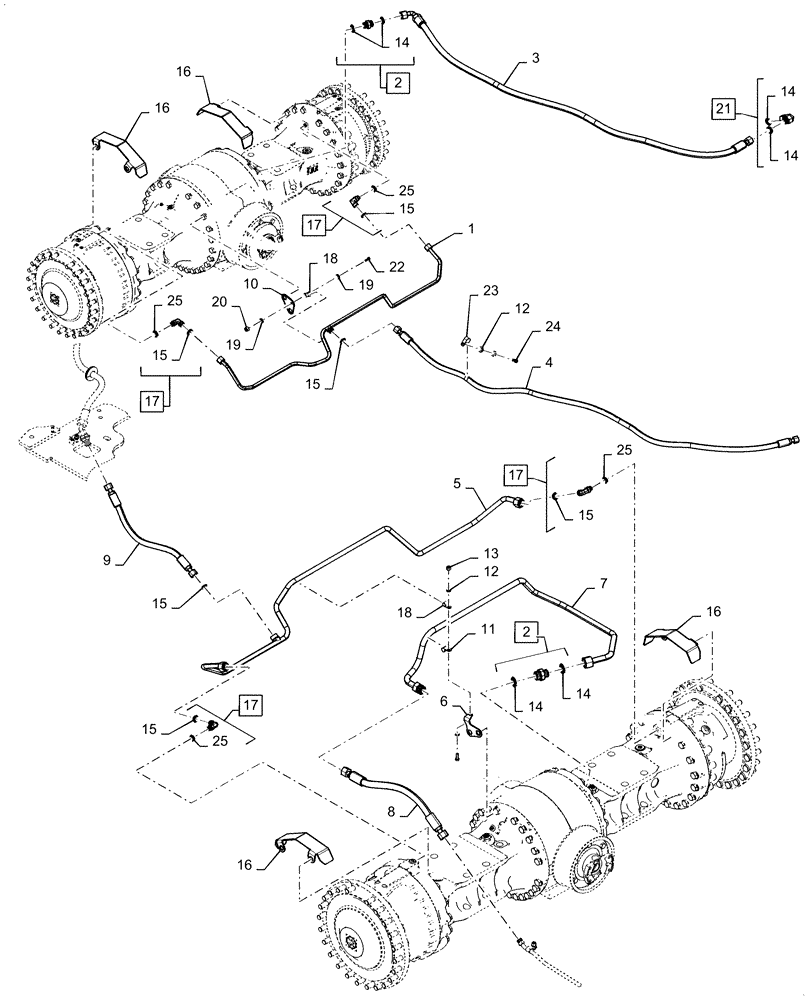

Запчасти Case 1121G (35.733.010[05]) - VAR - 424775 - AXLE COOLER LINE INSTALLATION, HD AXLE (35) - HYDRAULIC SYSTEMS

1

84576119

TUBE

Return, Front Axle

1шт.

2

87526208

CHECK VALVE

Incl 14

2шт.

3

84489957

HOSE ASSY.,19.05mm ID x 2345mm L, SAE 100R1

Suction, Front Axle

1шт.

4

84483052

HOSE ASSY.,15.88mm ID x 2489mm L, SAE 100R1

Return, Front Axle

1шт.

5

84513207

RIGID TUBE

Return, Rear Axle

1шт.

6

84513212

BRACKET

Rear Axle Tube Support

1шт.

7

84576165

RIGID TUBE

Suction, Rear Axle

1шт.

8

84513209

HOSE,19.05mm ID x 602mm L, SAE 100R1

Suction, Rear Axle

1шт.

9

84489959

HOSE ASSY.,15.88mm ID x 656mm L, SAE 100R1

Return, Rear Axle

1шт.

10

47488378

BRACKET

Front Axle Tube Support

1шт.

11

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

11шт.

15

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

10шт.

16

84391508

BRACKET, SUPPORTING

Otuer Axle Tube

4шт.

17

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Incl 15, 25

4шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

21

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

Incl 14

1шт.

22

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

24

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

25

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

8шт.
