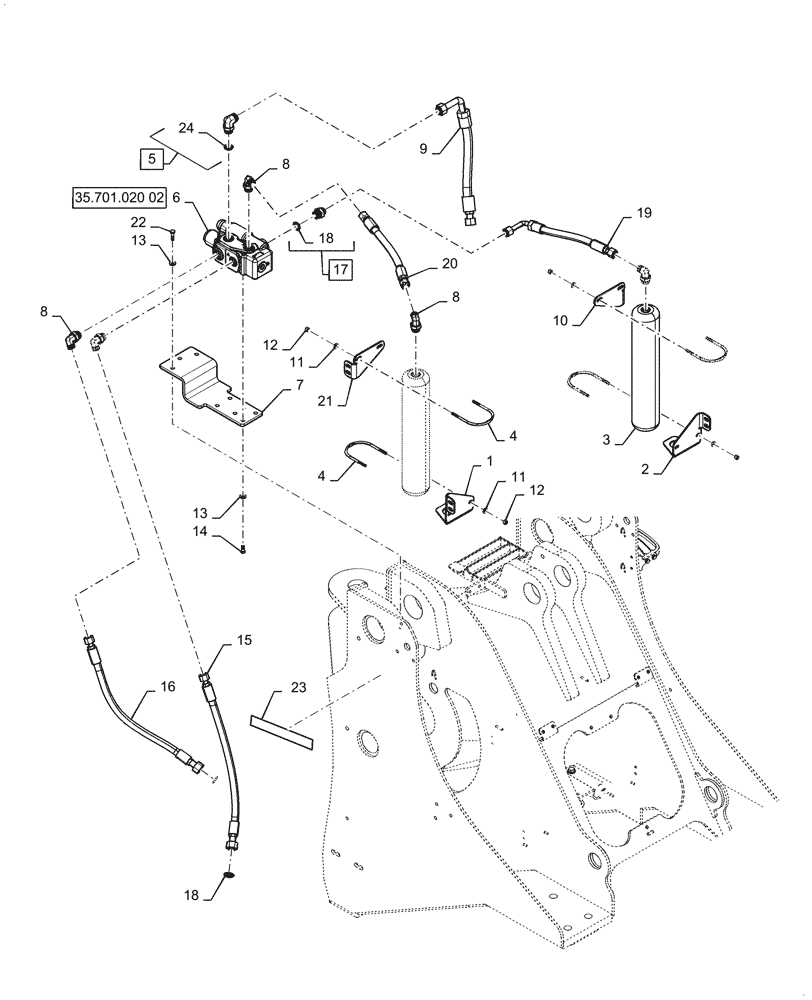

Запчасти Case 1121G (35.701.020[01]) - VAR - 782503 - RIDE CONTROL (35) - HYDRAULIC SYSTEMS

1

84300220

BRACKET, SUPPORTING

Accumulator, RH

1шт.

2

84300221

BRACKET, SUPPORTING

Accumulator, LH

1шт.

3

87393434

ACCUMULATOR,3.8L

2шт.

4

87492028

U-BOLT

4шт.

5

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 24

1шт.

6

84494279

CONTROL VALVE

Ride Control

1шт.

7

47994572

BRACKET

Ride Control

1шт.

8

86579698

90 ELBOW,1 3/16"-12 ORFS x M33 x 2 ORB

5шт.

9

47976172

HOSE

Ride Control Tank

1шт.

10

87529147

BRACKET

Ride Control

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

16шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

14

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

15

47988512

HOSE

Ride Control, RH

1шт.

16

47976175

HOSE

Ride Control, LH

1шт.

17

700-164

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 18

1шт.

18

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

19

47976174

HOSE

Ride Control Accumulator, LH

1шт.

20

47976170

HOSE

Ride Control Accumulator, RH

1шт.

21

84582820

BRACKET

Ride Control Accumulator

1шт.

22

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

23

84493112

DECAL

Ride Control

1шт.

24

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.
