Запчасти Case 1121G (35.526.010[02]) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

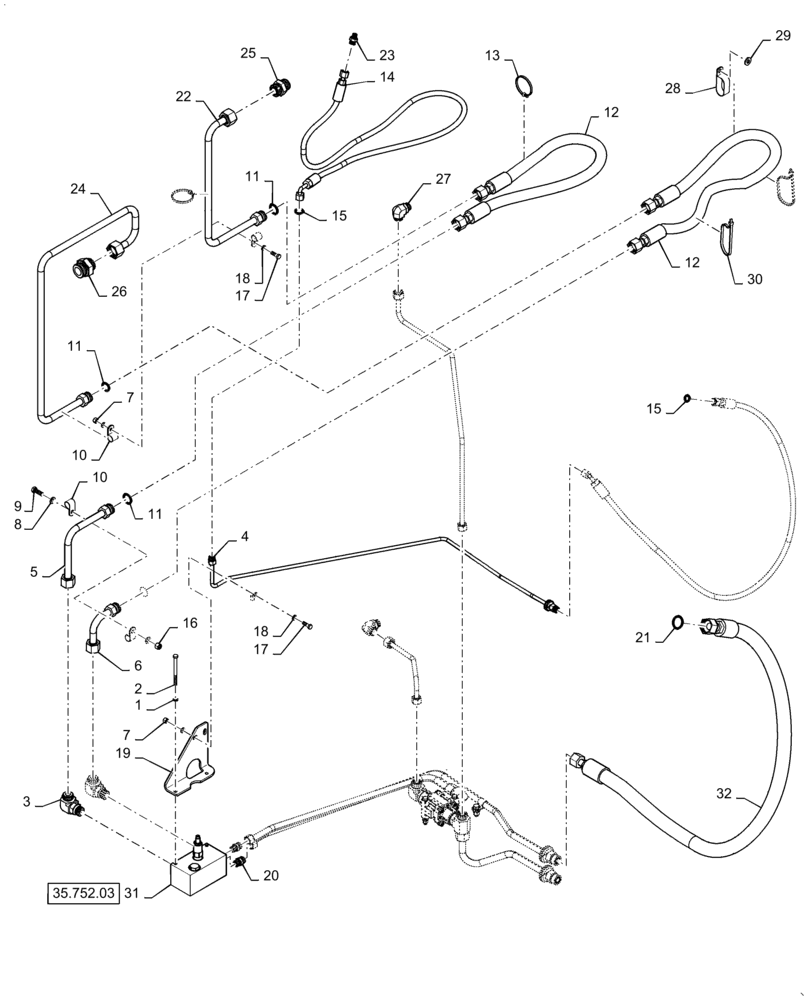

Схема запчастей Case 1121G - (35.526.010[02]) - COOLING FAN RELIEF VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS
8
10
27
18
16
17
11
24
35.752.03
29
25
10
2
22
13
3
23
9
20
30
1
12
32
21
18
7
7
26
15
11
19
11
4
6
14
5
28
31
12
17
15

Артикул

Название

Примечание

Количество

1

892-11008

LOCK WASHER,8mm ID

2шт.

2

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

3

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

4

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

1шт.

5

84373137

HYD TUBE

Fan Valve M2

1шт.

6

84402293

HYD TUBE

Fan Valve M1

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

4шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

12

84373141

HOSE ASSY.

Fan Door

2шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

5шт.

14

84373144

HOSE ASSY.

Fan Drain

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

84403808

BRACKET, SUPPORTING

1шт.

20

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

2шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

22

84373125

HYD TUBE

Fan Motor

1шт.

23

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

1шт.

24

84373123

HYD TUBE

Fan Motor

1шт.

25

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

26

700-158

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M42 x 2 Male ORB

1шт.

27

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

2шт.

28

L111928

CLAMP

1шт.

29

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

31

8500562

HYDRAULIC VALVE

Relief Valve, See Fig 35.752.03

1шт.

32

84468974

HOSE,19.05mm ID x 1365mm L, SAE 100R17

1шт.

Выбрано товаров: 32
