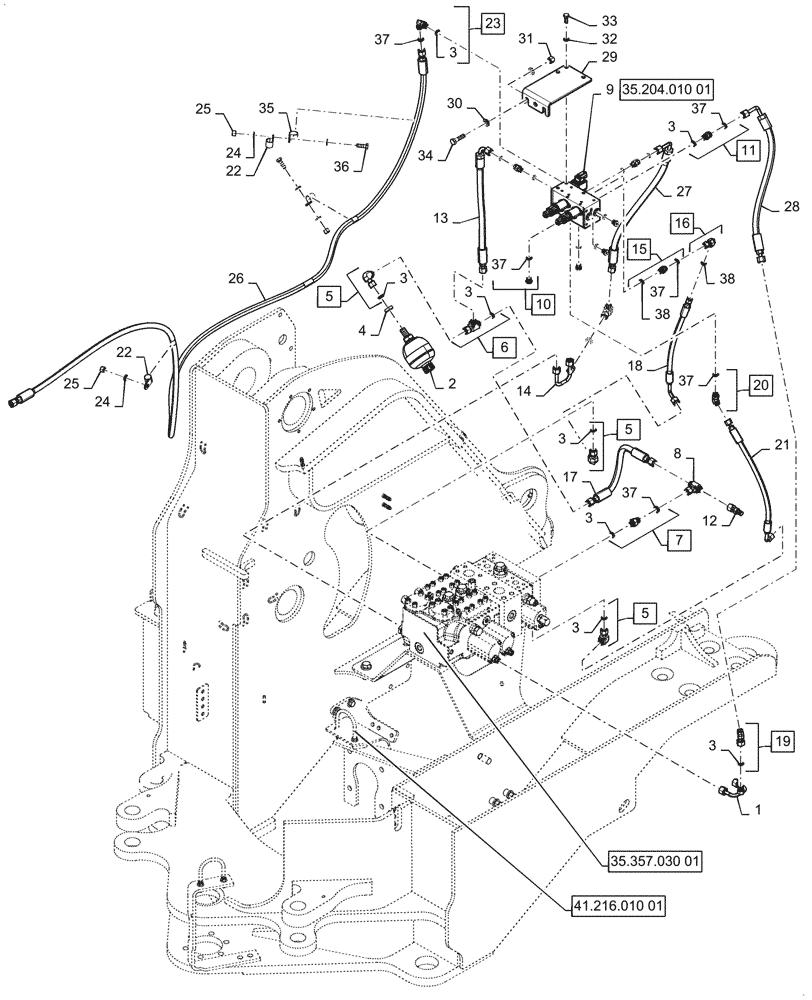

Запчасти Case 1121G (35.480.010[01]) - VAR - 734051, 734052 - CONTROL VALVE LINE - 2 FUNCTION, EH (35) - HYDRAULIC SYSTEMS

1

84377777

HYD TUBE

1шт.

2

48000080

ACCUMULATOR

Pilot Supply

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

4

701-909

NUT,11/16" - 16

1шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 3

4шт.

6

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 3

1шт.

7

391859A1

VALVE, CHECK

Incl 3, 37

1шт.

8

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

9

47718795

VALVE

EH Control, 2 Function

1шт.

10

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 37

7шт.

11

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 3, 37

3шт.

12

190119A1

COUPLING

Diagnostic

1шт.

13

47667164

HOSE

Pilot Pressure

1шт.

14

47713992

TUBE

1шт.

15

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 37, 38

1шт.

16

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 38

1шт.

17

47762217

HOSE

Pilot Pressure

1шт.

18

47667167

HOSE

Pilot Dump (Green)

1шт.

19

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl 3

1шт.

20

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 37

1шт.

21

47667169

HOSE

Pilot Rollback (Orange)

1шт.

22

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

3шт.

23

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 3, 37

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

26

47667166

HOSE

Pilot Tank

1шт.

27

47875478

HOSE

Pilot Raise / Lower (Red)

1шт.

28

47667168

HOSE

Pilot Raise / Lower (Yellow)

1шт.

29

47904310

BRACKET

Valve Mount

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

31

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

32

892-11010

LOCK WASHER,M10

3шт.

33

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

34

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

35

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

36

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

37

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

14шт.

38

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.
