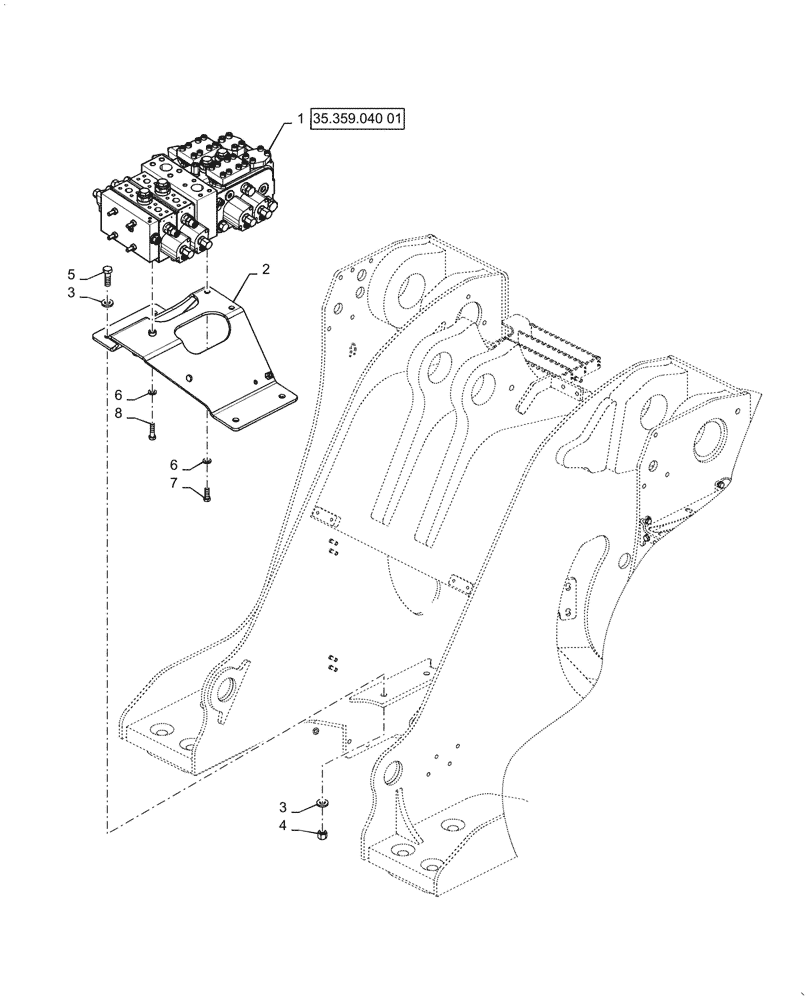

Запчасти Case 1121G (35.357.050[01]) - VAR - 734053, 734054 - CONTROL VALVE, MOUNTING - 3 FUNCTION, 4 SPOOL (35) - HYDRAULIC SYSTEMS

1

47574618

VALVE

3 Function, 4 Spool

1шт.

2

47936774

BRACKET

Loader Valve

1шт.

3

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

4

832-10416

NUT,M16 x 2, Cl 8

4шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.
