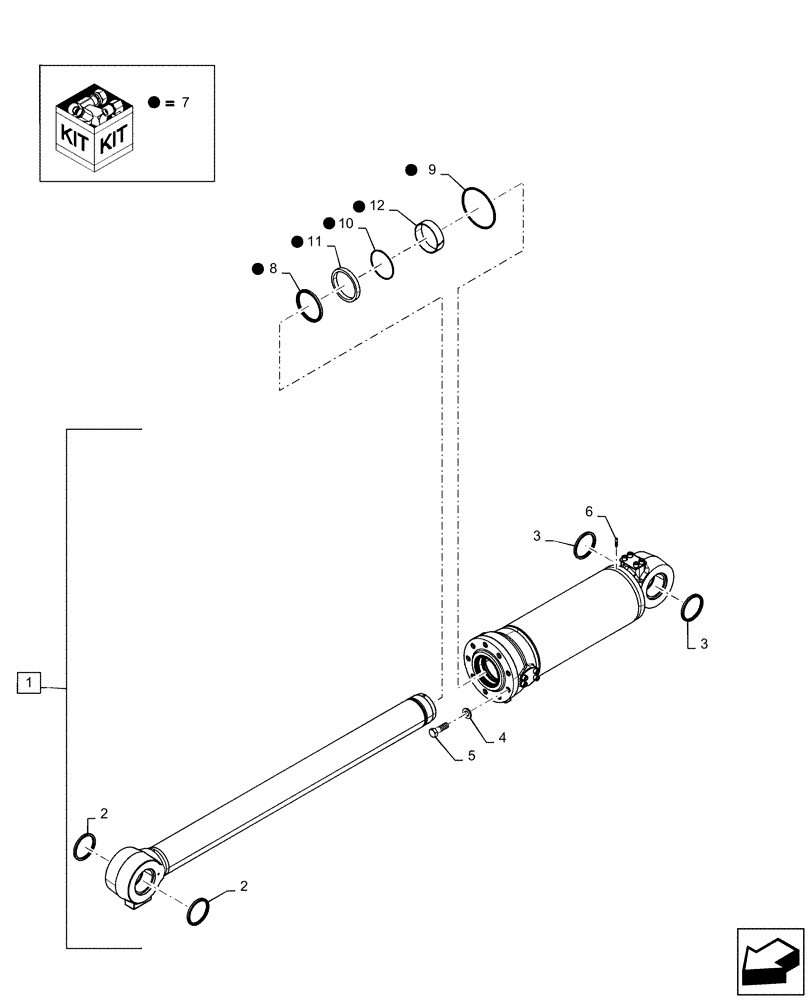

Запчасти Case 1121G (35.100.020[03]) - TILT CYLINDER ZBAR (35) - HYDRAULIC SYSTEMS

1

84324577

HYDRAULIC CYLINDER,Double Acting, 127mm Rod, 694.7mm Stroke

Incl 2 - 6

1шт.

2

84291138

BUSHING,101.92mm ID x 117.58mm OD x 112mm L

1шт.

3

S108245

WIPER SEAL

101.6mm

4шт.

4

87613298

WASHER,0.94" ID x 1.75" OD x 0.22" Thk

9шт.

5

87690481

BOLT,Hex, M22 x 70mm, Cl 10.9

9шт.

6

G106602

LOCK PIN

1шт.

7

84282953

SERVICE KIT

Incl 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

Rod U-Cup Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, 7.75 x 8 IN

1шт.

10

NSS

NOT SOLD SEPARAT

Backup Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Rod Buffer Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Backup Ring

1шт.
