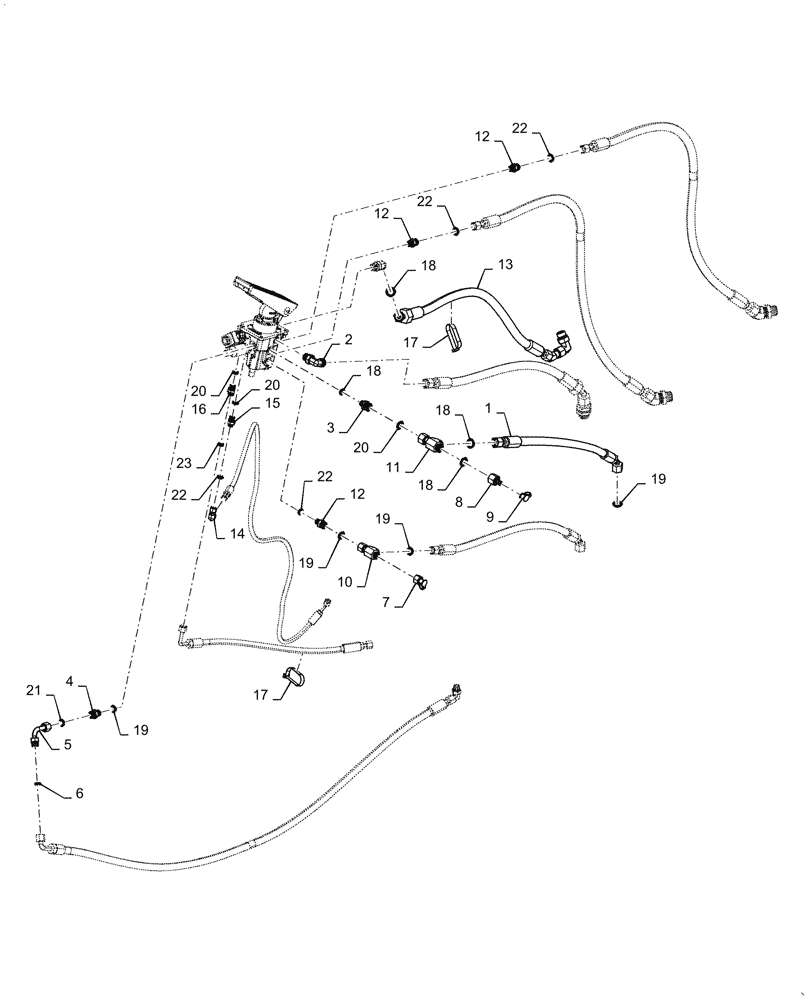

Запчасти Case 1121G (33.202.020[02]) - MAIN HYDRAULIC BRAKE (33) - BRAKES & CONTROLS

1

47671803

HOSE

Front Brake, 3200mm L, Service O-Rings Ref. 18, 19

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

Service O-Rings Ref. 18, 20

1шт.

4

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Service O-Rings Ref. 19, 21

1шт.

5

47672852

TUBE

Brake to Tank, 99mm L

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

190316A1

COUPLING

1шт.

8

324201A1

PLUG

1шт.

9

H434163

DUST CAP

1шт.

10

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Service O-Rings Ref. 19

1шт.

11

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Service O-Rings Ref. 18

1шт.

12

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Service O-Rings Ref. 22

3шт.

13

47671818

HOSE

Brake Pump to Brake Valve, 105mm L, Service O-Rings Ref. 18

1шт.

14

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

1шт.

15

84294527

HYD CONNECTOR,M16 x 1.5 ORB x 9/16" - 18 ORFS

Service O-Rings Ref. 20, 22

1шт.

16

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Service O-Rings Ref. 20, 21

1шт.

17

84266050

CABLE TIE,384mm L, Polyamide

1шт.

18

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
