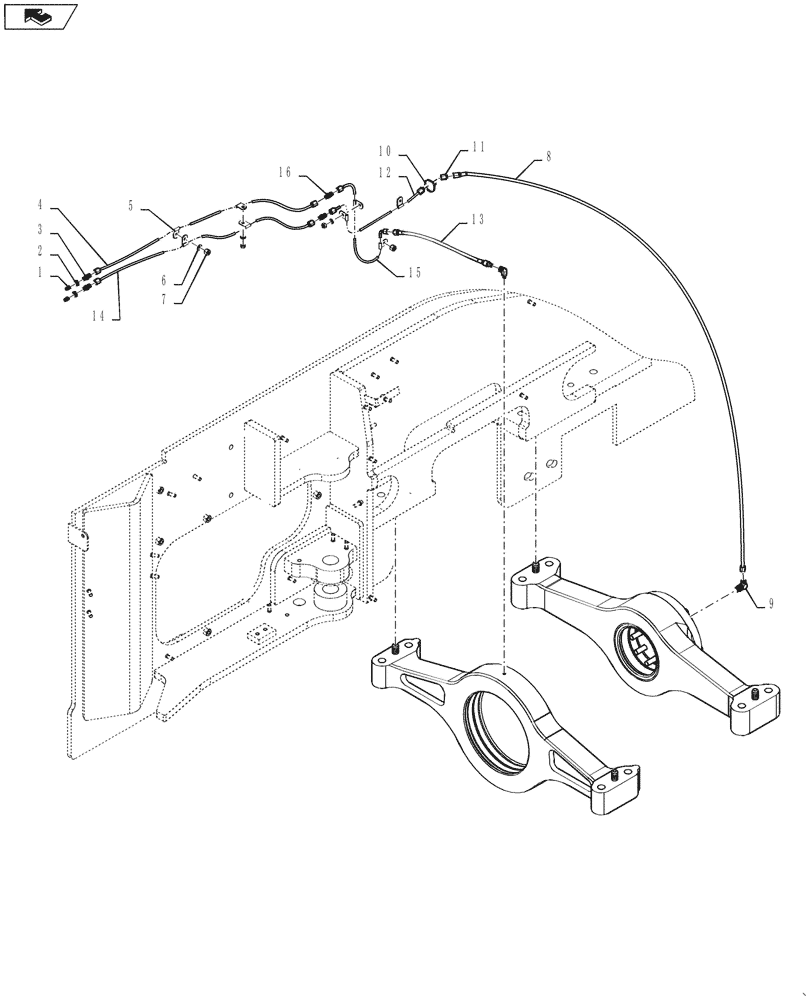

Запчасти Case 1021G (25.100.010[03]) - FRONT AND REAR AXLE MOUNTING LUBRICATION LINES (25) - FRONT AXLE SYSTEM

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

2

F53473

LOCK NUT,1/8-27 NPSM

2шт.

3

1990056C1

FITTING

Lube

2шт.

4

84421295

HYD TUBE

Grease Rear

1шт.

5

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

9шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

8

84421303

HOSE ASSY.

Grease Rear

1шт.

9

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

2шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

11

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

2шт.

12

84421297

HYD TUBE

Grease Rear

1шт.

13

84421304

HOSE ASSY.,4.83mm ID x 366mm L

Grease Front

1шт.

14

84421299

HYD TUBE

Grease Front

1шт.

15

84421301

HYD TUBE

Grease Front

1шт.

16

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

2шт.
