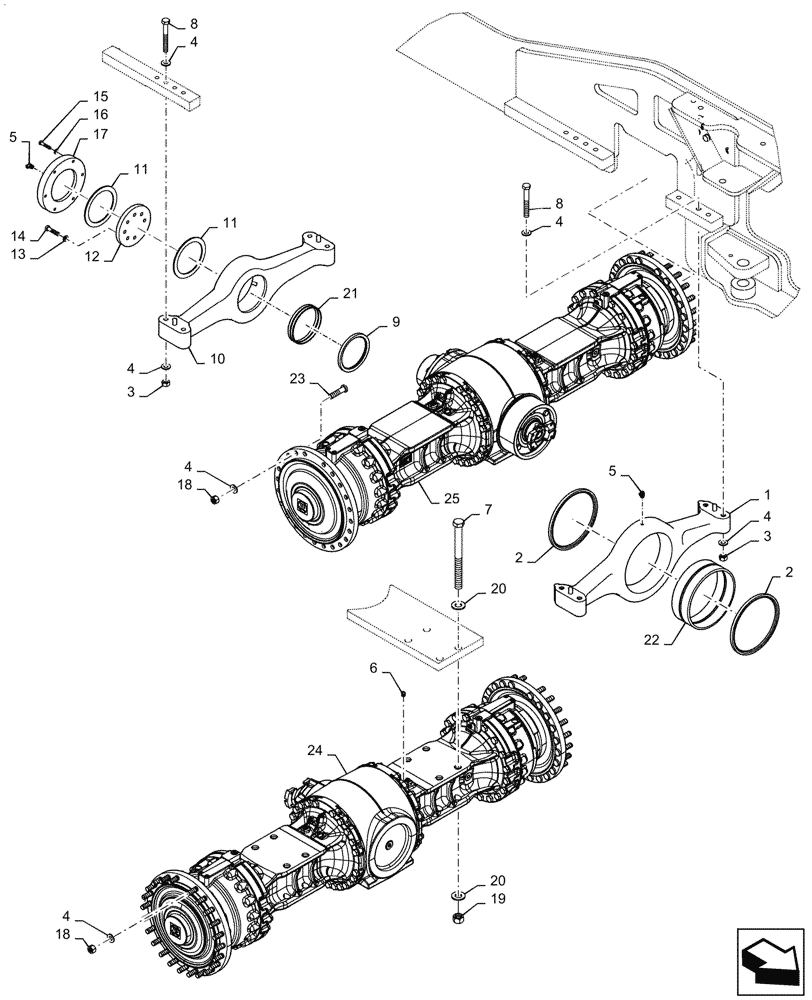

Запчасти Case 1021G (25.100.010[02]) - FRONT AND REAR AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

87359894

TRUNNION

Front

1шт.

2

84477336

SEAL,287.2mm ID x 320.83mm OD x 15mm Thk

Grease, Front

2шт.

3

829-1422

NUT,M22 x 2.5, Cl 10

8шт.

4

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

108шт.

5

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

2шт.

6

8603201

BREATHER

Valve

2шт.

7

86508625

BOLT,Hex, M30 x 340mm, Cl 10.9

8шт.

8

827-22170

BOLT,Hex, M22 x 2.5 x 170mm, Cl 10.9

8шт.

9

84477337

SEAL,167.3mm ID x 200.25mm OD x 15mm Thk

Grease; Rear

1шт.

10

87359882

TRUNNION

Rear

1шт.

11

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

Thrust, Trunnion

2шт.

12

L128277

SPACER

Rear Trunnion

1шт.

13

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

14

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

8шт.

15

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

17

87359893

COVER

Rear Trunnion

1шт.

18

84227695

NUT

M22x1.5

92шт.

19

829-1430

NUT,M30, Cl 10

8шт.

20

87036956

WASHER,32.8mm ID x 66.5mm OD x 6mm Thk

16шт.

21

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

Rear Trunnion

1шт.

22

313960A2

BUSHING,290.88mm ID x 303.34mm OD x 50mm L

Front Trunnion

1шт.

23

84406672

SCREW

23шт.

24

84256586

4WD AXLE ASSY

Complete, Front, Standard

1шт.

24

47804868

Complete, Front, Heavy Duty

1шт.

25

84138728

4WD AXLE ASSY

Complete, Rear, Standard

1шт.

25

84258247

4WD AXLE ASSY

Complete, Rear, Heavy Duty

1шт.
