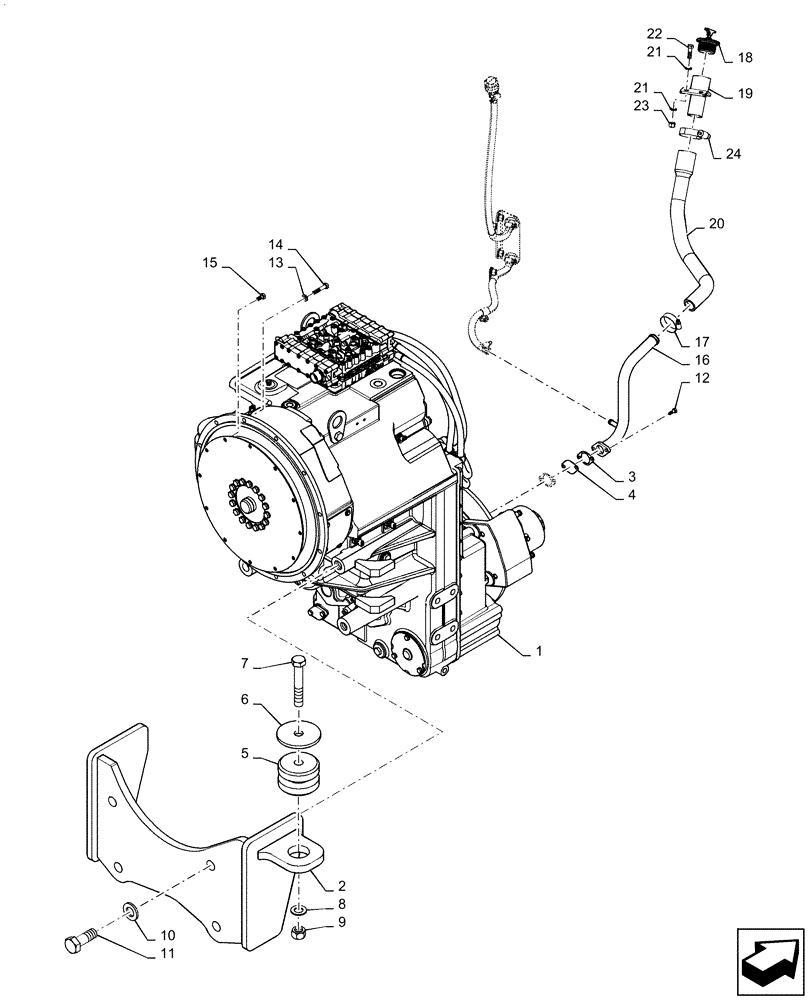

Запчасти Case 1021G (21.113.010) - VAR - 424224 -TRANSMISSION MOUNTING (21) - TRANSMISSION

1

84306966

TRANSMISSION

1шт.

1

84306966R

REMAN-TRANSMISSION

1шт.

1

84306966C

CORE-TRANSMISSION

Return Number

1шт.

2

84468961

BRACKET

1шт.

3

8603281

GASKET

2шт.

4

E135229

FILTER SCREEN

1шт.

5

114359A1

MOUNT

2шт.

6

L129147

WASHER

2шт.

7

326-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

2шт.

8

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

9

429-1016

NUT,1"-8, G8

2шт.

10

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

4шт.

11

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

4шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

13

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

24шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

12шт.

16

84397508

TUBE

1шт.

17

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

18

443565A1

CAP

1шт.

19

87646809

TUBE,46.23 mm L

Transmission Fill

1шт.

20

84397515

HOSE

Transmission Fill

1шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

22

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

24

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

1шт.
