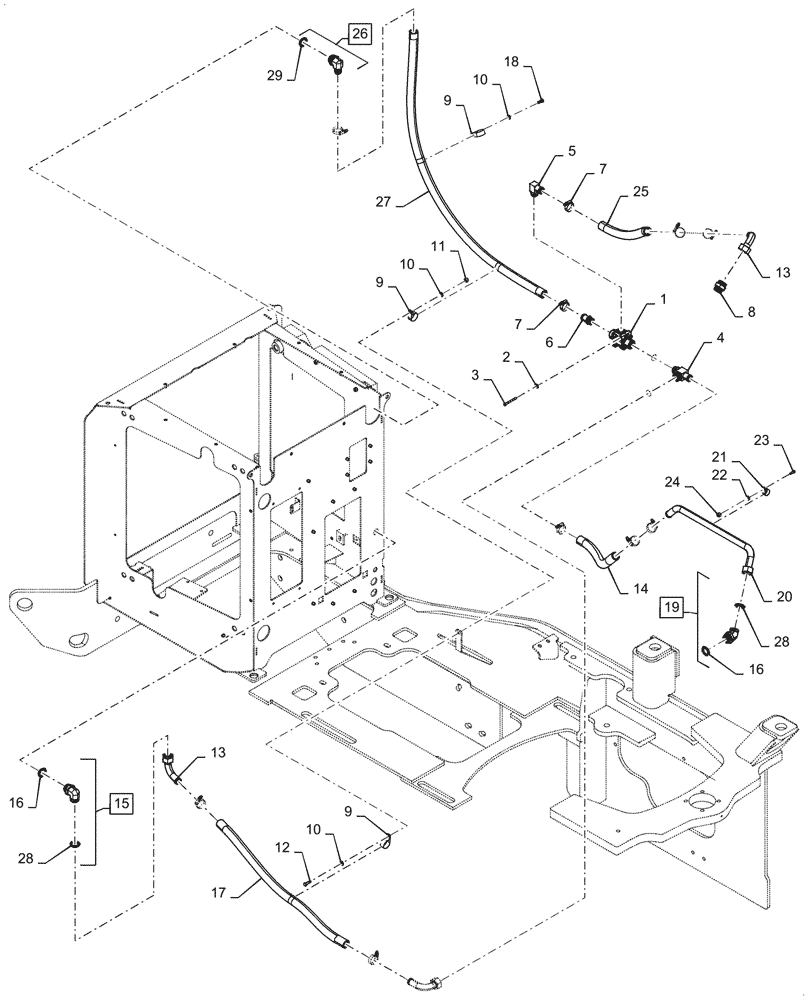

Запчасти Case 1021G (21.109.010) - VAR - 424224 - TRANSMISSION COOLER LINES WITH BY-PASS VALVE (21) - TRANSMISSION

1

84138750

VALVE

Bypass

1шт.

2

892-11008

LOCK WASHER,8mm ID

2шт.

3

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

4

84330430

TEE,1-11/16" - 12 ORFS x 1-5/16" - 12 ORB x 1-1/4" Hose Barb

O-Rings Supplied With Fitting

1шт.

5

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

6

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

7

353036A1

HOSE CLAMP,32mm - 54mm

10шт.

8

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

9

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

3шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

13

84540704

TUBE

3шт.

14

84428783

HOSE

Tank to Pump

1шт.

15

700-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 16, 28

1шт.

16

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

2шт.

17

84541188

HOSE,31.75mm ID x 1127mm L, SAE 100R4

Cooler to Valve

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

19

700-354

ELBOW,45 Degree Elbow, 1-11/16" - 12 Male ORFS x M42 x 2 Male ORB

Incl 16, 28

1шт.

20

84428780

TUBE

Cooler In

1шт.

21

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

23

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

25

84541190

HOSE

Transmission To Valve

1шт.

26

84566713

90 ELBOW

Incl 29

1шт.

27

84541186

HOSE,31.75mm ID x 1850mm L, SAE 100R4

Valve to Cooler

1шт.

28

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

29

637-64386

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.
