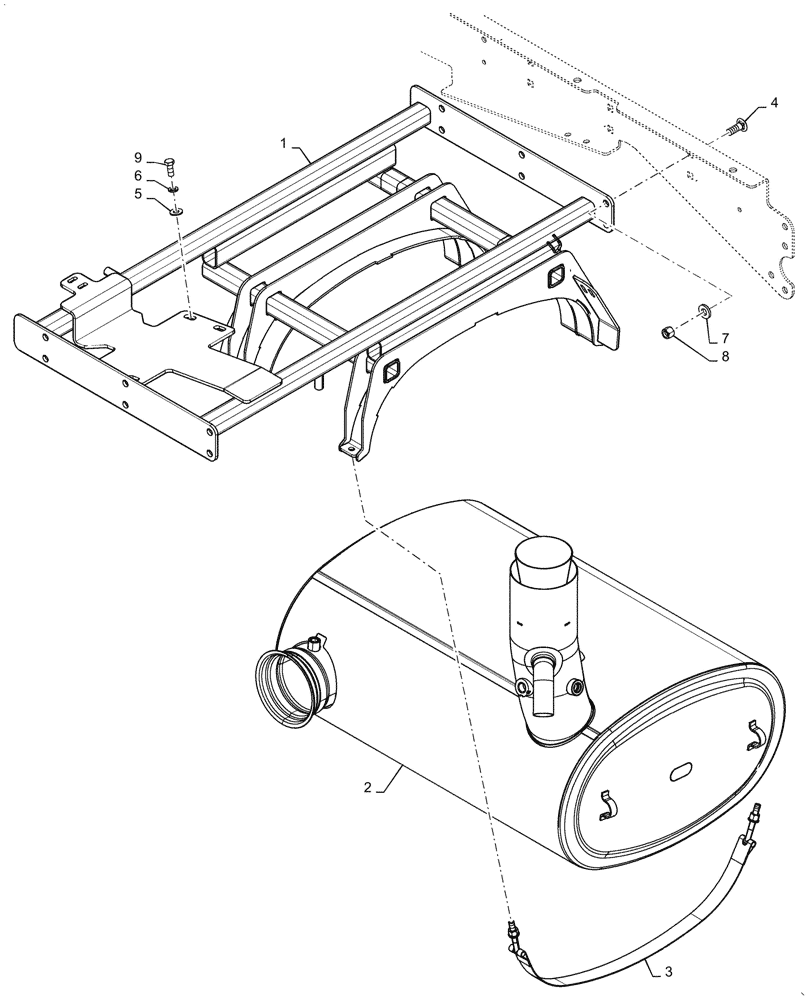

Запчасти Case 1021G (10.254.010[01]) - MUFFLER INSTALLATION, DOC CLUSTER (10) - ENGINE

1

47873529

FRAME

Muffler, DOC

1шт.

2

47622221

MUFFLER

1шт.

3

47532200

STRAP

Mounting

2шт.

4

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

10шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

892-11010

LOCK WASHER,M10

4шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

10шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

10шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.
