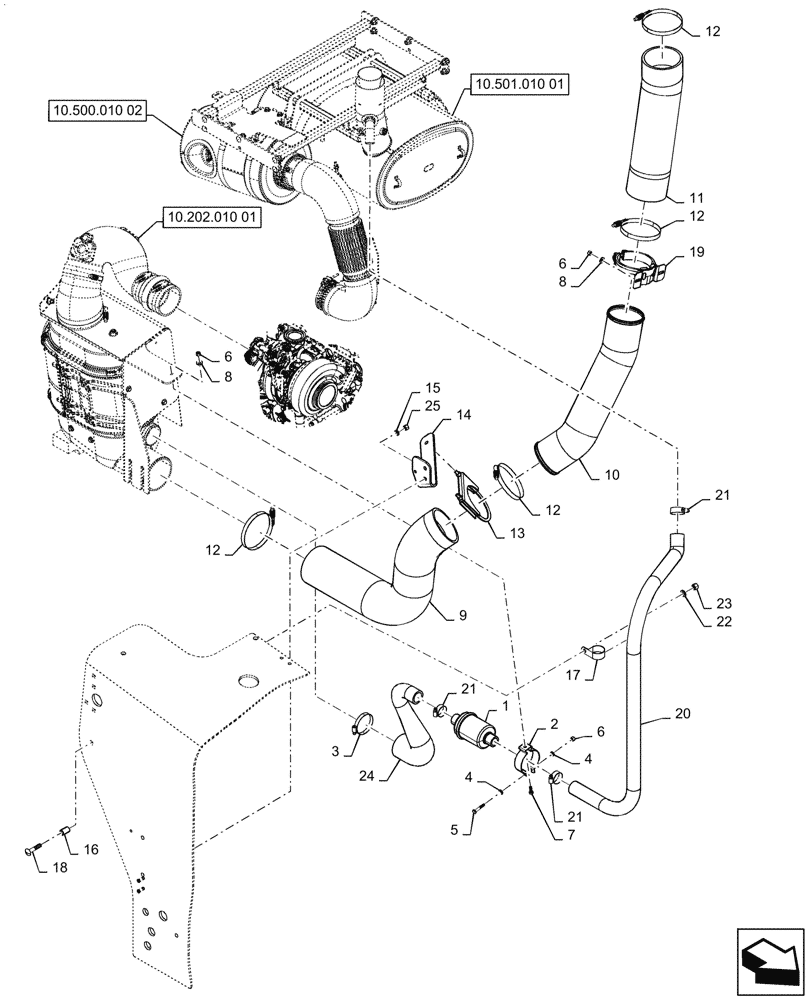

Запчасти Case 1021G (10.202.010[02]) - AIR CLEANER AND HOSES (10) - ENGINE

1

90-7640T1

VALVE

Aspirator Check Valve

1шт.

2

90-7639T1

CLAMP

Check Valve

1шт.

3

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

4

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

5

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

7

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

8

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

9

84261841

INTAKE AIR HOSE

Lower

1шт.

10

47361711

PIPE

Center

1шт.

11

47361713

HOSE

Upper

1шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

4шт.

13

A184592

CLAMP

Muffler, 5 Inch

1шт.

14

47418697

BRACKET

Intake Hose Mounting

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

1шт.

17

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

18

87337888

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

19

47361736

CLAMP

Intake Hose

1шт.

20

47530289

HOSE

Aspirator, Upper

1шт.

21

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

22

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

24

47599295

HOSE

Aspirator, Lower

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
