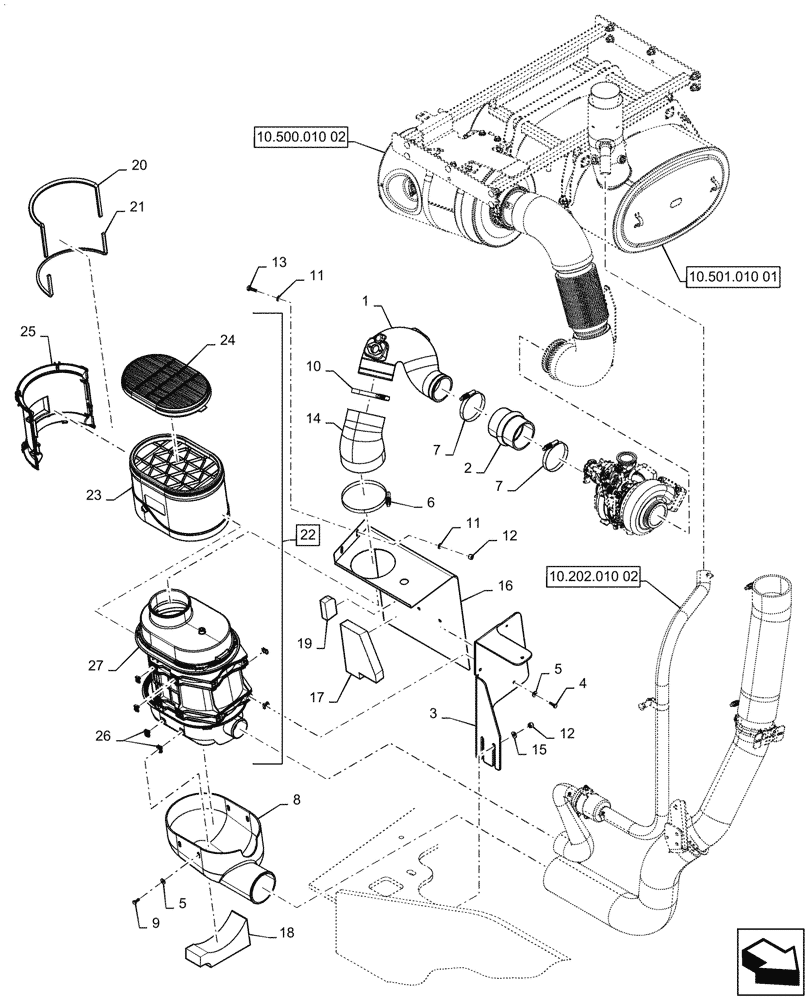

Запчасти Case 1021G (10.202.010[01]) - AIR CLEANER AND HOSES (10) - ENGINE

1

84327116

AIR INTAKE TUBE

Plenum

1шт.

2

333794A1

HOSE

Plenum Intake to Turbo

1шт.

3

47531060

BRACKET

Air Cleaner Mounting

1шт.

4

6278025

SCREW,M8 x 25mm, Cl 10.9

4шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

12шт.

6

L129160

CLAMP,158.75mm - 180.97mm

1шт.

7

L127771

CLAMP,107.95mm - 130.18mm

2шт.

8

84261839

MANIFOLD

Air Cleaner Housing

1шт.

9

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

10

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

14

84308150

HOSE

Intake

1шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

84489982

HEAT SHIELD

1шт.

17

84402116

FOAM

Insulation

1шт.

18

84402117

FOAM

Insulation

1шт.

19

84402117

FOAM

Insulation

1шт.

20

84530536

SEALING STRIP

Air Cleaner Cover

1шт.

21

84530537

SEALING STRIP

Air Cleaner Cover

1шт.

22

47605877

AIR CLEANER

Assembly, Incl 22 - 27

1шт.

23

87356545

AIR FILTER

Primary Element

1шт.

24

87356547

AIR FILTER

Secondary Element

1шт.

25

84402329

COVER ASSY

1шт.

26

84402330

CLIP

U-Clip

12шт.

27

NSS

NOT SOLD SEPARAT

Air Cleaner Body, Incl in Ref. 22

1шт.
