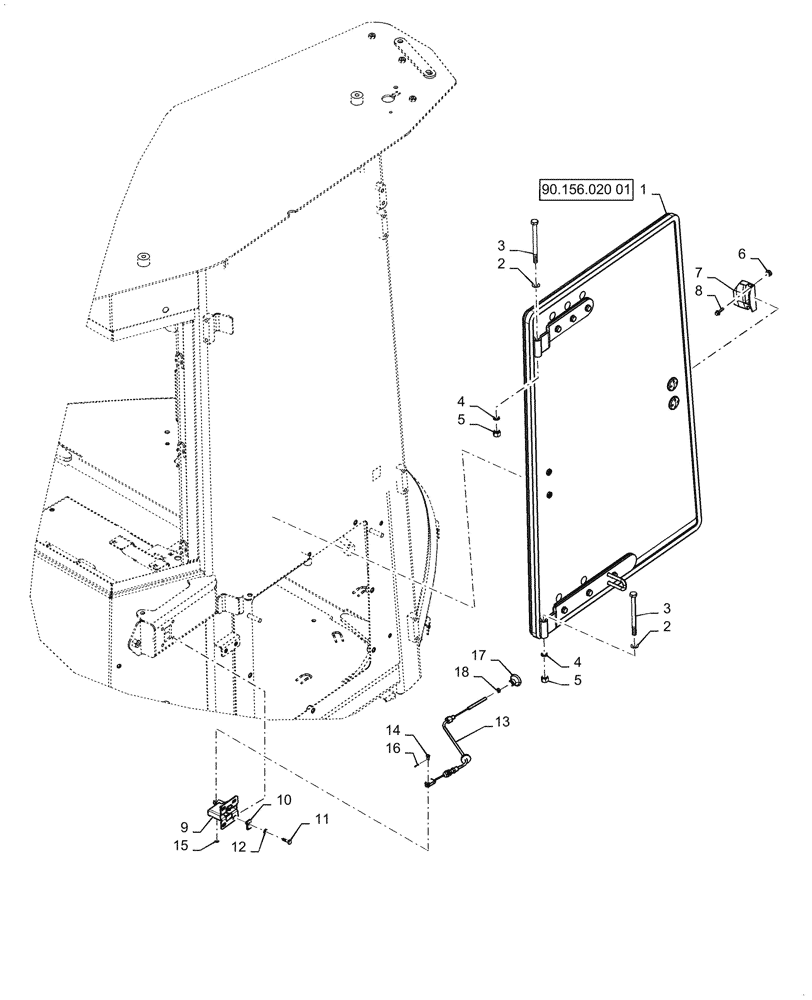

Запчасти Case 1021G (90.156.020) - VAR - 734065 - RIGHT SIDE WINDOW INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

See Fig 90.156.020 (01)

1шт.

2

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

2шт.

3

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

4

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

87309034

SPACER

4mm Thick

2шт.

7

186149A4

STRIKER PLATE

1шт.

8

781-24620

SELF-TAP SCREW,Hex Flg Hd, M6 x 20

2шт.

9

4227178

LOCK

1шт.

10

833-40306

SPRING NUT,M6, U

4шт.

11

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

13

47763711

CABLE

Control

1шт.

14

71485274

PIN,5mm OD x 13mm L

1шт.

15

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

16

732-1610

COTTER PIN,M1.6 x 10

1шт.

17

76303157

KNOB

M6

1шт.

18

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.
