(90.120.010) - VAR - 734062, 734072 - SEAT, MECHANICAL SUSPENSION

Запчасти Case 1021G (90.120.010) - VAR - 734062, 734072 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

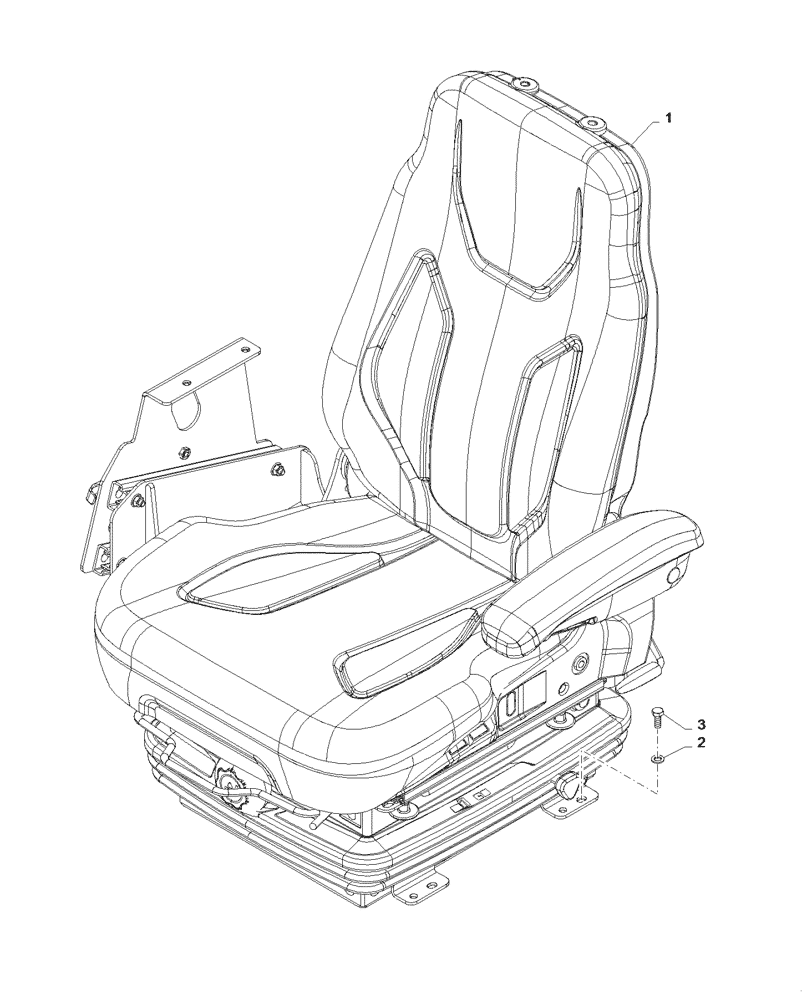

Схема запчастей Case 1021G - (90.120.010) - VAR - 734062, 734072 - SEAT, MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47629403

DRIVER SEAT

Mechanical Cloth

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

3

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.
