(90.108.010[01]) - DECALS COMMON TO MODEL

Запчасти Case 1021G (90.108.010[01]) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

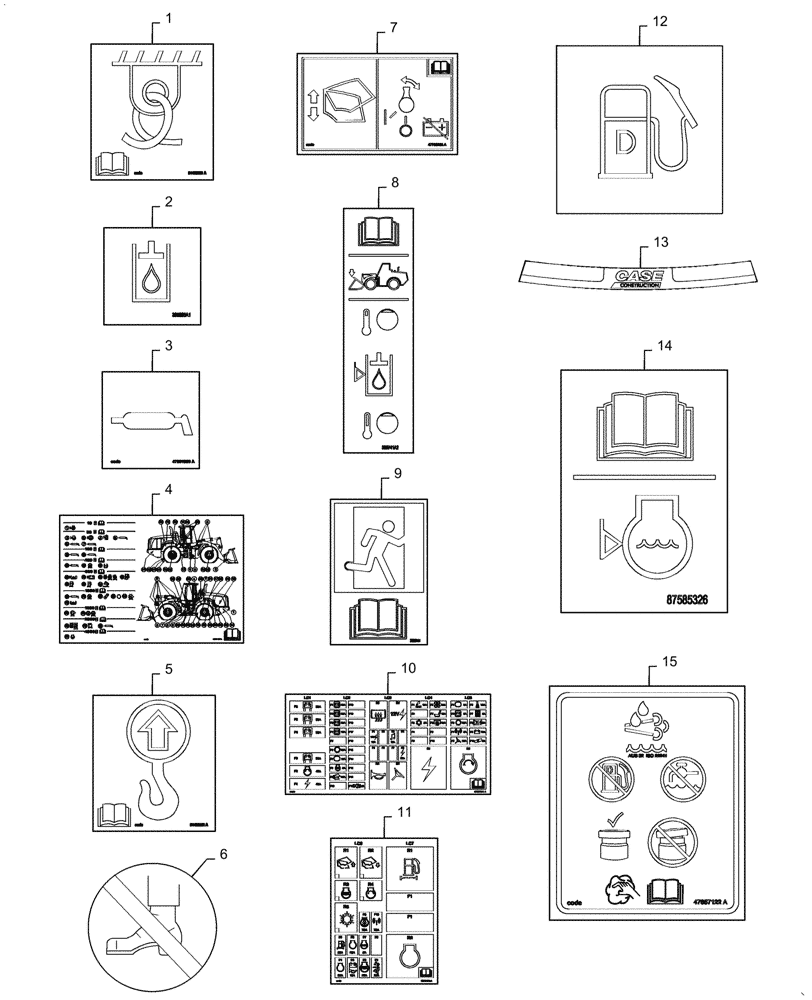

Схема запчастей Case 1021G - (90.108.010[01]) - DECALS COMMON TO MODEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
5
11
12
7
10
15
1
3
14
13
9
8
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84409663

DECAL

Tie Down

14шт.

2

395895A1

DECAL

Hydraulic Oil

2шт.

3

47981900

DECAL

Grease Lube Point

4шт.

4

48014402

DECAL

Maintenance Chart

1шт.

5

84409662

DECAL

Lift Point

4шт.

6

E134402

DECAL

No Step

1шт.

7

47795290

DECAL

Hood Switch / Battery Disconnect

1шт.

8

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

9

329051A1

DECAL

Emergency Exit

1шт.

10

47997341

DECAL

Fuse Chart

1шт.

11

47906429

DECAL

Fuse & Relay

1шт.

11

47944665

DECAL

Fuse & Relay

1шт.

12

47713819

DECAL

Diesel Fuel

1шт.

13

47964669

DECAL

Cab Visor Fritting

1шт.

14

87585326

DECAL

Coolant Level

1шт.

15

47657122

DECAL

DEF

1шт.

15

84284896

DECAL,DEF TANK identification label

DEF

1шт.
