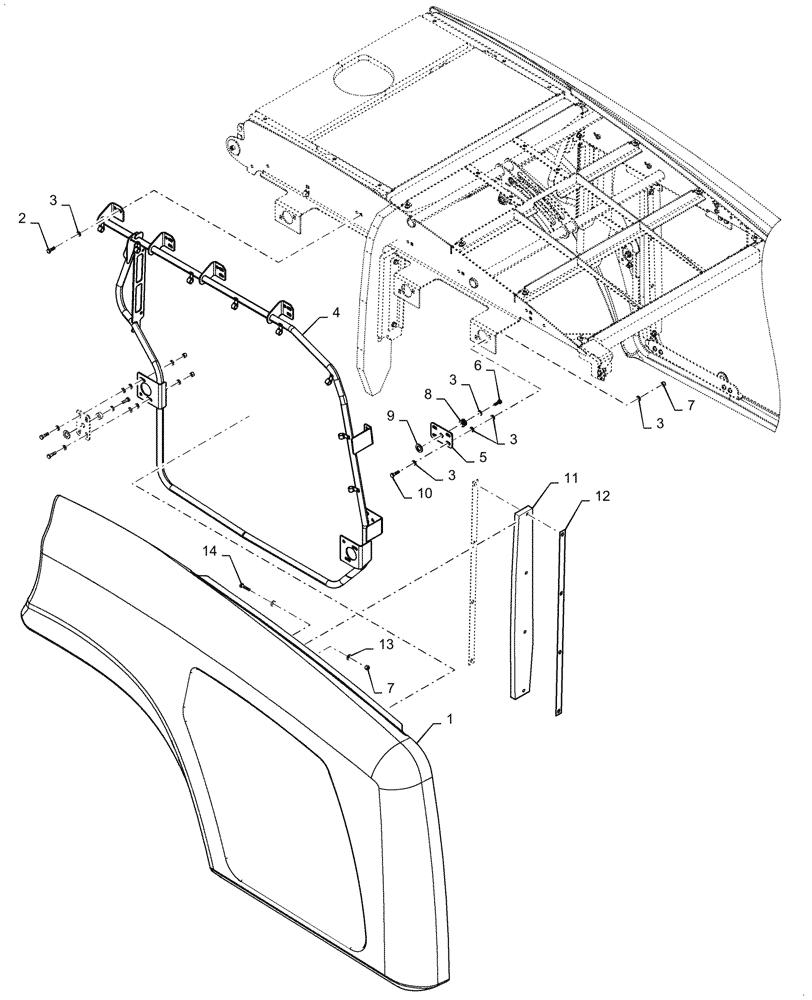

Запчасти Case 1021G (90.105.010[03]) - HOOD INSTALLATION, LEFT HAND PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84315397

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

5шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

36шт.

4

47369285

PIPE

1шт.

5

84374069

MOUNTING PLATE

5шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

8

434177A1

ISOLATOR

5шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

5шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

10шт.

11

84485904

BAFFLE

1шт.

12

84485677

STRIP

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

14

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.
