Запчасти Case 1021G (88.100.55[17]) - DIA KIT, JOYSTICK CONTROL KIT, W/ SEC ELEC STEERING (88) - ACCESSORIES

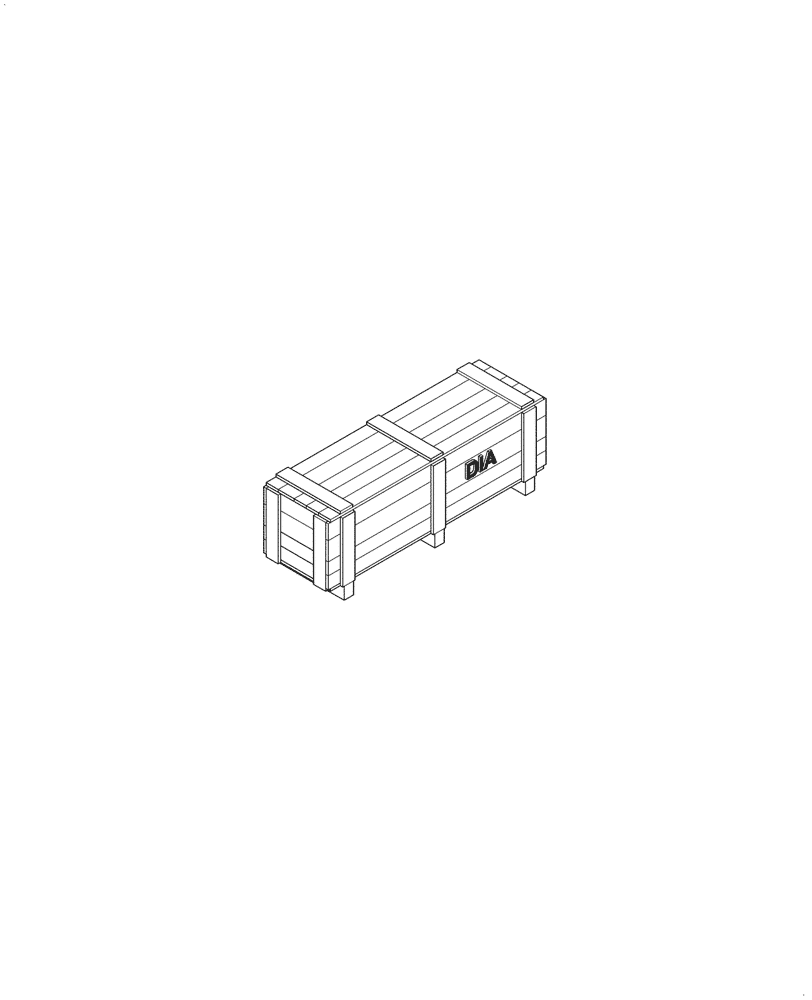

Схема запчастей Case 1021G - (88.100.55[17]) - DIA KIT, JOYSTICK CONTROL KIT, W/ SEC ELEC STEERING (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

48016293

DIA KIT, Incl 2 - 51

1шт.

2

48016294

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1.0шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1.0шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

11.0шт.

6

47921416

HOSE

1.0шт.

7

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

1.0шт.

8

47921412

HOSE

1.0шт.

9

832-10406

NUT,M6 x 1, Cl 8

4.0шт.

10

895-15012

WASHER,M12 x 28 x 2.5

3.0шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

3.0шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3.0шт.

13

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8.0шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4.0шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1.0шт.

16

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1.0шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4.0шт.

18

47908613

STEERING VALVE

1.0шт.

19

47915621

BRACKET

1.0шт.

20

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1.0шт.

21

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

2.0шт.

22

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

1.0шт.

23

47908251

VALVE

1.0шт.

24

47737957

90 ELBOW

1.0шт.

25

47915354

FITTING

2.0шт.

26

47908617

VALVE

2.0шт.

27

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

2.0шт.

28

47921415

HOSE

1.0шт.

29

47915616

BRACKET

1.0шт.

30

47915618

BRACKET

1.0шт.

31

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10.0шт.

32

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2.0шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4.0шт.

34

47786983

SENSOR

1.0шт.

35

47927995

HOSE

1.0шт.

36

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4.0шт.

37

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4.0шт.

38

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

4.0шт.

39

47996952

WIRE HARNESS

1.0шт.

40

79005244

WASHER,10.6mm ID x 25mm OD x 6mm Thk

2.0шт.

41

48002802

ARMREST

1.0шт.

42

48016913

BRACKET

1.0шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3.0шт.

44

48016294

1.0шт.

49

84153830

FUSE,5A, Mini, Beige

1.0шт.

50

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

51

450492R1

SPACER,1/2" Pipe x 1"

3шт.

Выбрано товаров: 47
