Запчасти Case 1021G (88.100.55[16]) - DIA KIT, JOYSTICK CONTROL KIT, W/ STANDARD HYDRAULIC STEERING (88) - ACCESSORIES

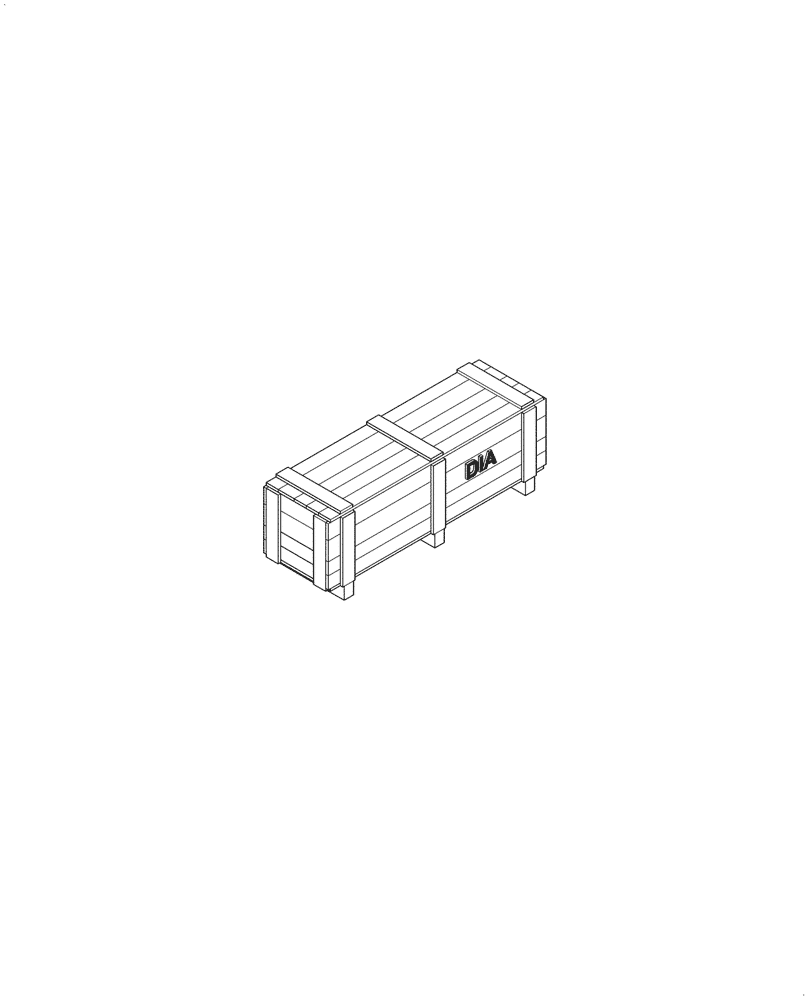

Схема запчастей Case 1021G - (88.100.55[16]) - DIA KIT, JOYSTICK CONTROL KIT, W/ STANDARD HYDRAULIC STEERING (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

1

48048928

KIT, JOYSTICK STEERING W/ STD HYD STEERING, Incl 2 - 49

KIT

1шт.

2

48048929

INSTRUCTION, JOYSTICK STEERING W/ STD HY

INSTRUCTION

1шт.

3

700-115

HYD CONNECTOR,1" - 14 Male ORFS x M18 x 1.5 Male ORB

2шт.

4

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

3шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

6

47908251

VALVE

SHUTTLE TEE

1шт.

7

450492R1

SPACER,1/2" Pipe x 1"

3шт.

8

47737957

90 ELBOW

10 ORFS X M18X1.5

1шт.

9

47908617

VALVE

CUTOFF

2шт.

10

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

1шт.

11

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

12

47921410

HOSE

JSS VALVE TO PRIORITY VALVE

1шт.

13

48060848

HOSE

JOYSTICK TO PRIORITY VALVE-TC

1шт.

14

84214050

45 ELBOW,1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

15

47921412

HOSE

RETURN MANIFOLD

1шт.

16

895-15012

WASHER,M12 x 28 x 2.5

WASHER

3шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

19

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

48022714

HOSE

LH, JOYSTICK STEERING

1шт.

22

48022715

HOSE

RH, JOYSTICK STEERING

1шт.

23

47915354

FITTING

FITTING, LOADER VALVE RETURN

2шт.

24

47915621

BRACKET

JSS VALVE MOUNT

1шт.

25

47915616

BRACKET

VALVE MOUNT

1шт.

26

47915618

BRACKET

VALVE MOUNT ADJUST

1шт.

27

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

10шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

29

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

31

832-10406

NUT,M6 x 1, Cl 8

4шт.

32

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

1шт.

33

47921409

HOSE

ORBITROL TO JOYSTICK VALVE

1шт.

34

47786983

SENSOR

STEERING ANGLE

1шт.

35

701-419

FITTING,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

36

84989412

ELBOW,90 Degree, 1-3/16-12 ORFS x 1-3/16"-12 Fem Sw

1шт.

37

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

4шт.

38

11032331

BOLT,Hex, M6 x 90mm, Cl 10.9

4шт.

39

48020061

ORIFICE

1шт.

40

48037668

BRACKET

JSS SENSOR MOUNTING

1шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

42

300380

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

43

47996952

WIRE HARNESS

JOYSTICK

1шт.

44

79005244

WASHER,10.6mm ID x 25mm OD x 6mm Thk

2шт.

45

48002802

ARMREST

JSS ASSEMBLY

1шт.

46

48016913

BRACKET

JSS ARMREST MOUNT

1шт.

47

84153830

FUSE,5A, Mini, Beige

1шт.

48

L11541

CABLE TIE,203.2mm L, Nylon

9шт.

49

47908613

STEERING VALVE

1шт.

Выбрано товаров: 49
