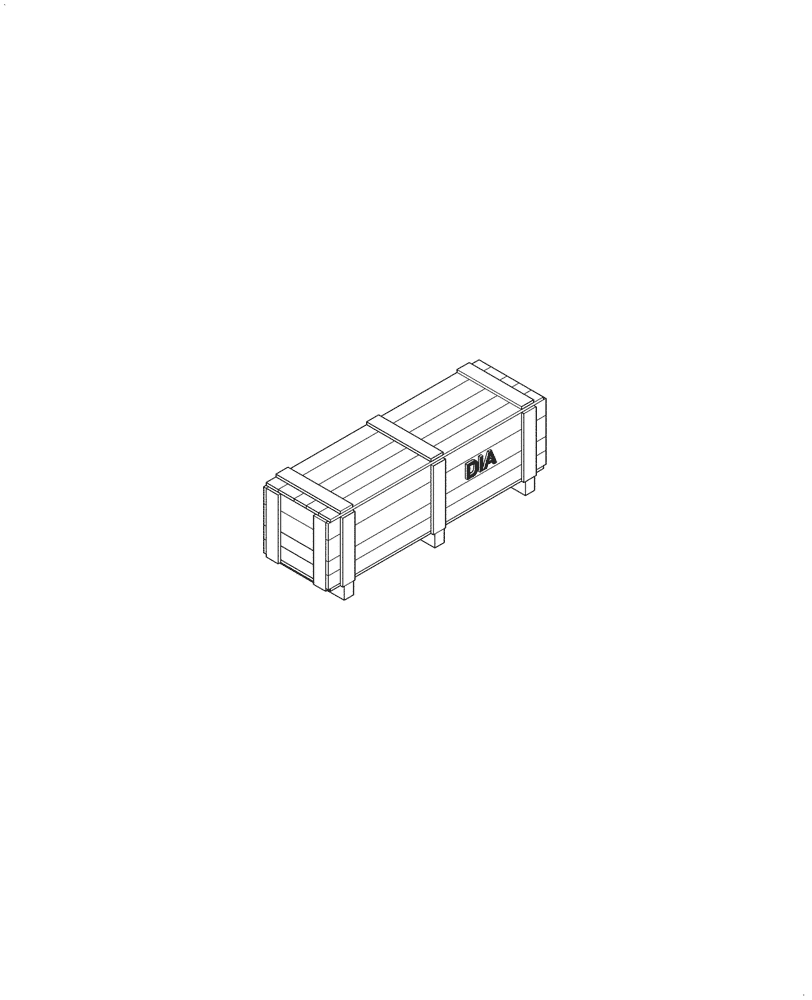

Запчасти Case 1021G (88.100.55[04]) - DIA KIT, COLD WEATHER PACKAGE (88) - ACCESSORIES

1

48011021

KIT

DIA KIT, Cold Weather Package, Incl 2 - 25

1шт.

2

48078937

INSTRUCTION

1шт.

3

47774490

CABLE

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

9

832-10406

NUT,M6 x 1, Cl 8

4шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

11

84540512

RELAY,150A

1шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

13

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

14

47876107

CABLE

Grid Heater, Power, Fuse to Relay

1шт.

15

47565510

CABLE

Grid Heater, Power, Relay to Heater

1шт.

16

84303546

BLOCK HEATER

1шт.

17

196466A1

ELECTRIC CABLE

Engine Heater

1шт.

18

19-135

CABLE TIE

1шт.

19

84389191

WATER SEPARATOR

1шт.

20

47728994

DECAL

Ether Warning

2шт.

21

8603095

WARNING DECAL

Ether Warning (EU)

2шт.

22

8603094

WARNING DECAL

Ether Warning (Spanish)

2шт.

23

47728074

DECAL

Ether Warning (French Canadian)

2шт.

24

84357866

HEATER,24V, 115A, 2750W

1шт.

25

87492618

GASKET

1шт.

26

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.
