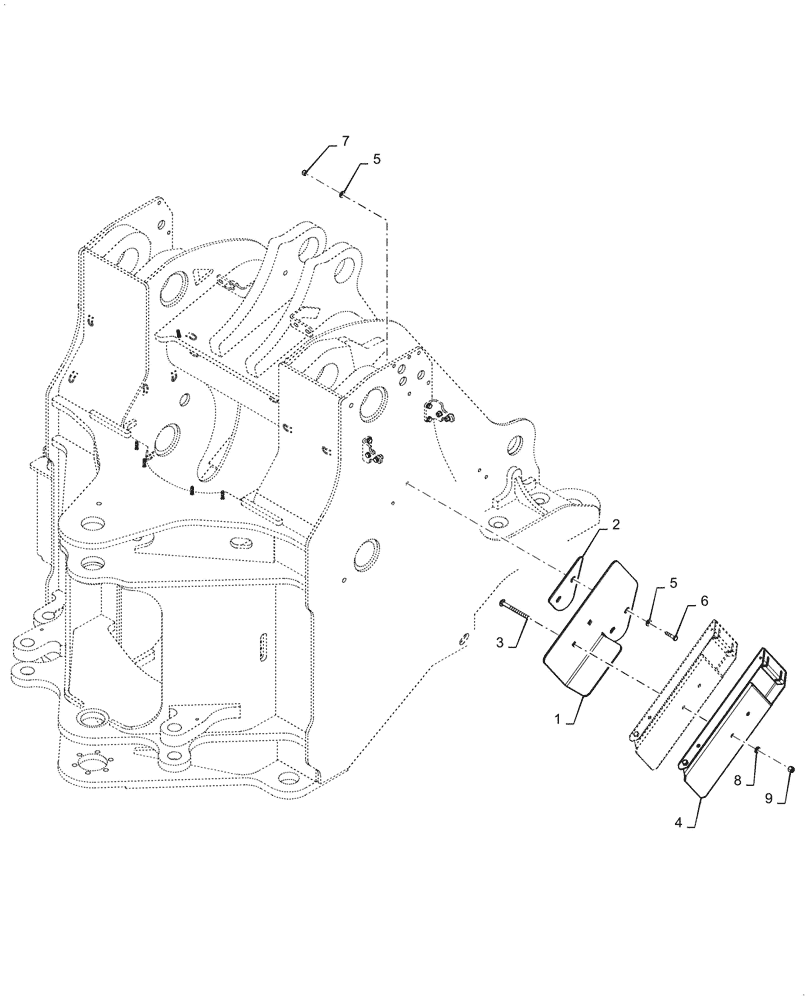

Запчасти Case 1021G (88.100.020) - VAR - 47898673 - WHEEL CHOCKS (88) - ACCESSORIES

1

NSS

NOT SOLD SEPARAT

Mounting Plate

1шт.

2

47574585

MOUNT

1шт.

3

9819462

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 135mm, Cl 8.8

2шт.

4

84583256

WHEEL CHOCK

2шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

6

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
