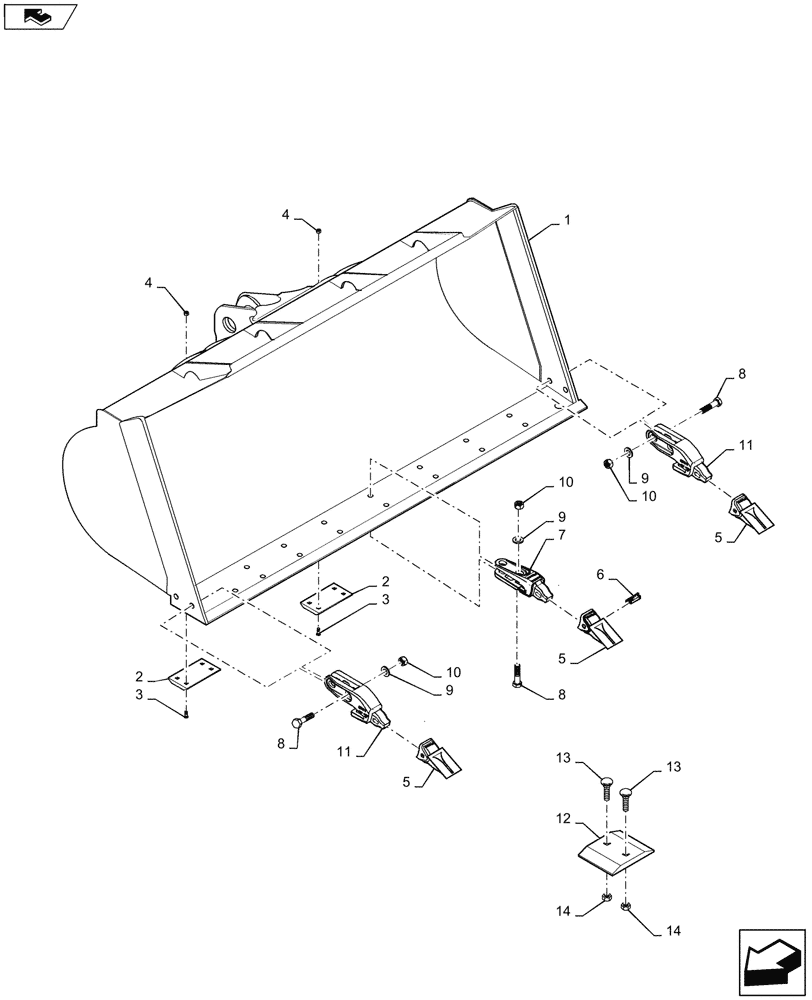

Запчасти Case 1021G (82.300.030[01]) - VAR - 424249, 424257, 424906 - LOADER BUCKET - WITH TEETH, SEGMENTS AND SKID PADS/COUPLERS (82) - FRONT LOADER & BUCKET

1

84248287

BUCKET

3.5 Cubic Meters ( 4.6 Cubic Yards ), Incl 2 - 11

1шт.

1

84242190

BUCKET

4.0 Cubic Meters ( 5.3 Cubic Yards ), Incl 2 - 14

1шт.

2

87527923

SKID PLATE

Bottom, Bolt On

2шт.

3

420-21240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 8

8шт.

4

425-1612

NUT,3/4"-10, G5, Hvy

8шт.

5

84168139

BUCKET TOOTH POINT

Point (SF20TYL)

9шт.

5

84216121

BUCKET TOOTH

Rock Chisel (SF20RC)

9шт.

5

84216123

BUCKET TOOTH

General Purpose (SF20SYL)

9шт.

5

84216124

BUCKET TOOTH

Tiger (SF20TV)

9шт.

5

84216128

TEETH

Twin Tiger (SF20UT)

9шт.

5

84216205

BUCKET TOOTH

Flare (SF20F)

9шт.

5

84216206

BUCKET TOOTH

Heavy Penetrater (SF20HP)

9шт.

5

84216207

TEETH

Rock Loader (SF20RL)

9шт.

6

84168140

BUCKET TOOTH KEY

Mounting Hardware

9шт.

7

84168142

TEETH

Bolt-On, Center

7шт.

8

426-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

18шт.

9

496-21106

WASHER,1 1/16" x 2" x .209", HDN

18шт.

10

429-1016

NUT,1"-8, G8

18шт.

11

84168138

TEETH

Bolt-On, Corner

2шт.

12

87306707

CUTTER

Segments Cuting Edge For Teeth

8шт.

13

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

16шт.

14

429-1016

NUT,1"-8, G8

16шт.
