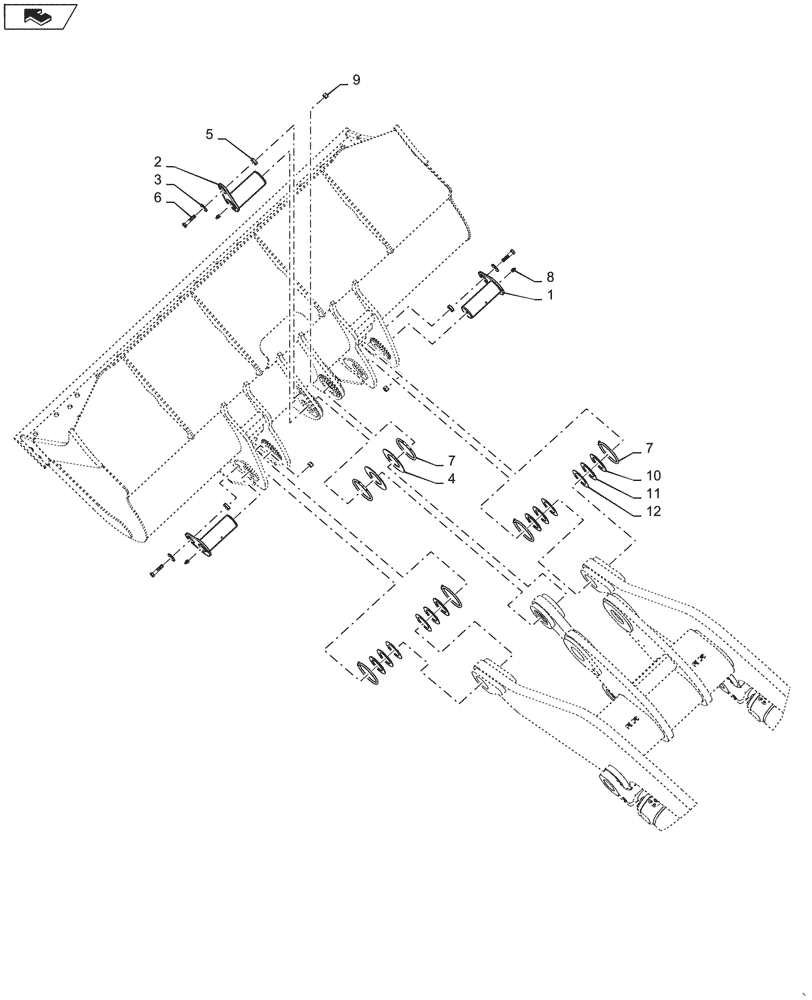

Запчасти Case 1021G (82.300.010[01]) - VAR - 782537, XV5203X - BUCKET MOUNTING (82) - FRONT LOADER & BUCKET

1

84277294

PIN,101.6mm OD x 267mm L

2шт.

2

84277303

PIN,101.6mm OD x 266mm L

1шт.

3

87355604

WASHER

Hardened

3шт.

4

84278979

SHIM

115.8mm ID x 210mm OD, 3.5mm THK

2шт.

5

L127846

SPACER,22.2mm ID x 44.45mm OD x 14.3mm L

3шт.

6

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

3шт.

7

87309174

O-RING,167mm ID

6шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

9

832-10420

NUT,M20 x 2.5, Cl 8

3шт.

10

84315433

SHIM,ID 103.1 x OD 155, 1.0 Thk

103.1mm ID x 155mm OD, 1mm THK

1шт.

11

84315434

SHIM,ID 103.1 x OD 155, 2.5 Thk

103.1mm ID x 155mm OD, 2.5mm THK

1шт.

12

84277332

SHIM,ID 103.1 x OD 155, 3.5 Thk

103.1mm ID x 155mm OD, 3.5mm THK

1шт.
