Запчасти Case 1021G (55.518.020) - VAR - 734065 - FRONT WINDSHIELD WIPER MOUNT (55) - ELECTRICAL SYSTEMS

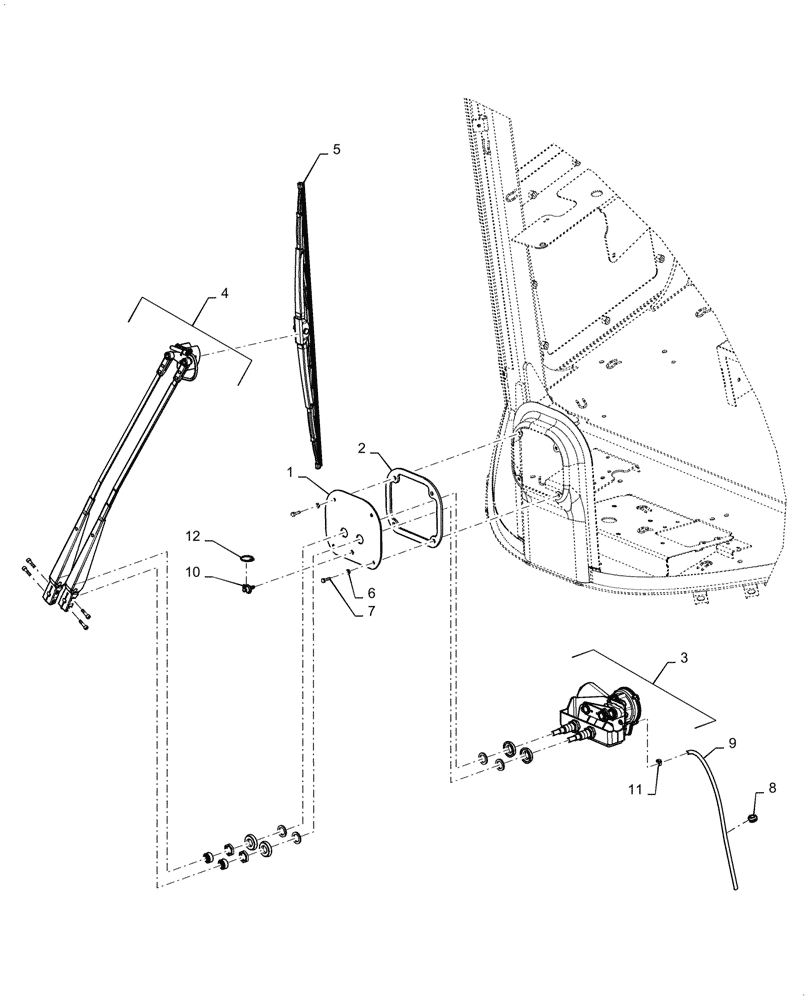

Схема запчастей Case 1021G - (55.518.020) - VAR - 734065 - FRONT WINDSHIELD WIPER MOUNT (55) - ELECTRICAL SYSTEMS
7
2
1
4
12
10
3
6
5
9
11
8

Артикул

Название

Примечание

Количество

1

47984268

PLATE

Front Motor Mounting

1шт.

2

47870339

SEAL

Front Wiper Plate

1шт.

3

47984291

WIPER MOTOR

Includes All Wiper Mounting Hardware

1шт.

4

47984292

WIPER ARM

1шт.

5

47984295

WIPER BLADE

Saddle, 800mm

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

8

248-1169

GROMMET,3/8" ID x 5/8" Groove Dia

1шт.

9

384140A1

HOSE,4.77 mm ID x 762.00 mm

1шт.

10

47988614

FITTING

90 Deg

1шт.

11

84477330

HOSE CLAMP,8.97mm - 10.11mm

1шт.

12

869707C1

STRAP,368.3mm L

1шт.

Выбрано товаров: 12
