Запчасти Case 1021G (55.510.030[01]) - CAB MAIN WIRE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS

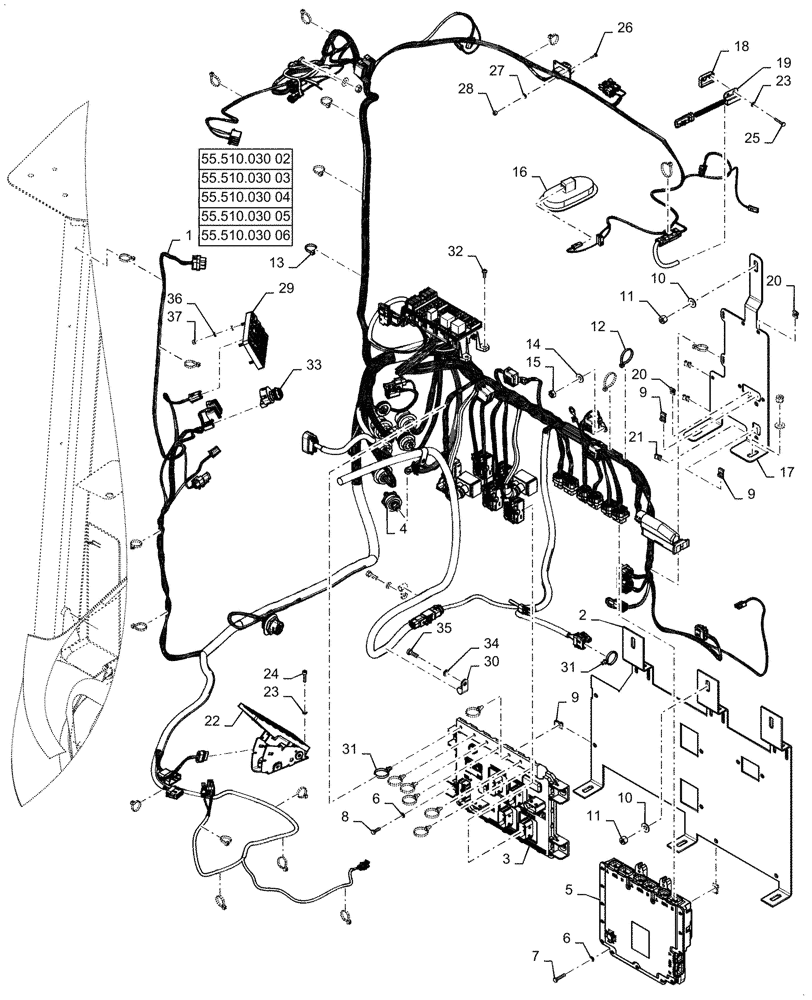

Схема запчастей Case 1021G - (55.510.030[01]) - CAB MAIN WIRE HARNESS INSTALLATION (55) - ELECTRICAL SYSTEMS
55.510.030 03
13
11
1
23
33
2
19
35
9
26
25
10
16
10
27
14
31
8
22
7
11
9
3
9
34
18
28
29
31
6
23
5
20
4
30
32
17
37
24
21
36
15
20
6
12
55.510.030 04
55.510.030 05
55.510.030 06
55.510.030 02

Артикул

Название

Примечание

Количество

1

47971221

WIRE HARNESS

Cab, W/ Fuses and Relays

1шт.

2

47862568

BRACKET

Control Box Mount

1шт.

3

47920624

ECU

SFB 24v

1шт.

4

190158A1

BLOCK

Junction Box Assembly

1шт.

5

47749442

ECU

UCM1, 24v

1шт.

5

47749442R

REMAN ELECT CONTROL

UCM1, 24v

1шт.

5

47749442C

CORE-ELECTRONIC CONT

Core Return Number

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

627-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 10.9, Full Thd

4шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

9

833-40306

SPRING NUT,M6, U

10шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

9шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

15шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

32шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

4шт.

15

253347A1

NUT,Hex, M10 x 1.5

4шт.

16

87632710

COURTESY LIGHT

Dome Light

1шт.

17

47862221

PLATE

Mounting

1шт.

18

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

19

47643484

PROXIMITY SWITCH

1шт.

20

833-40305

SPRING NUT,M5, U

4шт.

21

84467159

SPRING NUT,M4

4шт.

22

47943358

Accelerator, Foot Throttle W/ Sensor

THROTTLE

1шт.

23

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

8шт.

24

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

25

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

2шт.

26

86511042

SCREW,Pan Head, M4 x 0.7 x 16mm, Cl 4.8

4шт.

27

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

28

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

29

47975629

CONTROL PANEL

Panel, Control Switch Pad

1шт.

30

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

3шт.

31

87668737

CABLE TIE,203.2mm L, Nylon, Black

10шт.

32

297850A1

SCREW,Cross Pan Hd, M6 x 16

4шт.

33

47716552

IGNITION SWITCH

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

35

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

36

892-11005

LOCK WASHER,M5

4шт.

37

825-1405

NUT,M5, Cl 8

4шт.

Выбрано товаров: 39
