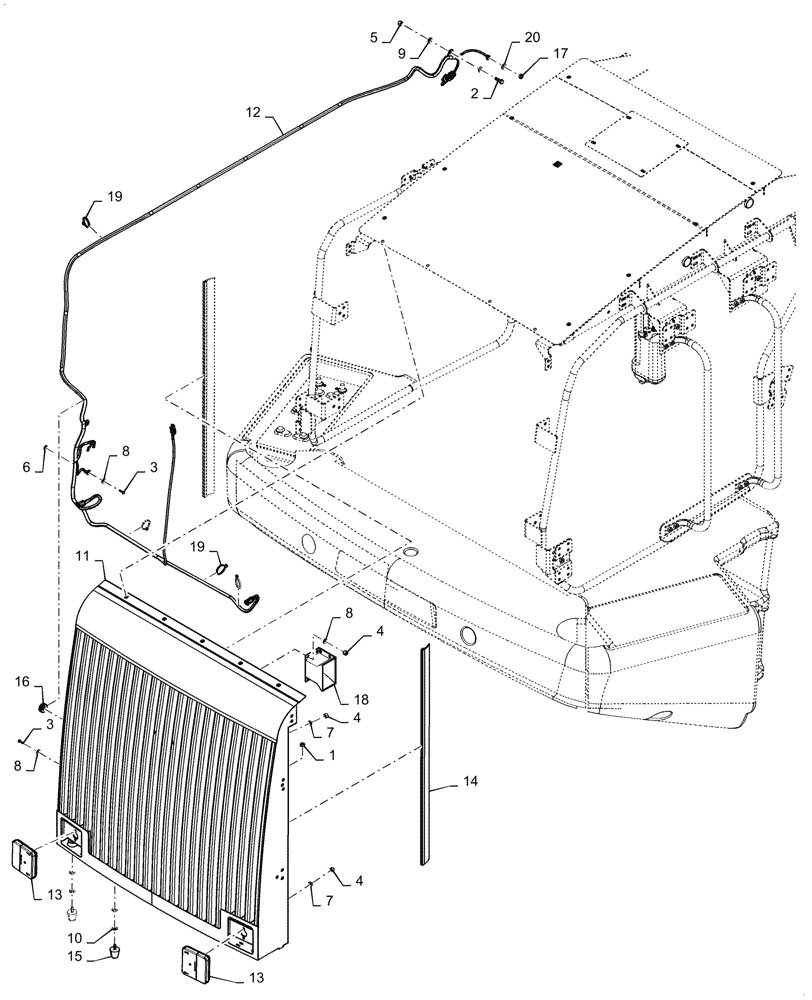

Запчасти Case 1021G (55.404.020[01]) - REAR LIGHTS (55) - ELECTRICAL SYSTEMS

1

425-105

NUT,5/16"-18, G5

4шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

3

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

5шт.

4

832-10406

NUT,M6 x 1, Cl 8

8шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

6

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

9шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

11

47969935

SCREEN

Rear

1шт.

12

47903767

WIRE HARNESS

Hood

1шт.

13

47997979

LAMP

Rectangle, LED W/ Turn Signal

2шт.

14

48005759

SEAL

Fan Door

2шт.

15

84541962

BUMPER

4шт.

16

87300241

GROMMET

Roof

1шт.

17

253347A1

NUT,Hex, M10 x 1.5

1шт.

18

D121972

ALARM

Back-Up

1шт.

19

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

20

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.
