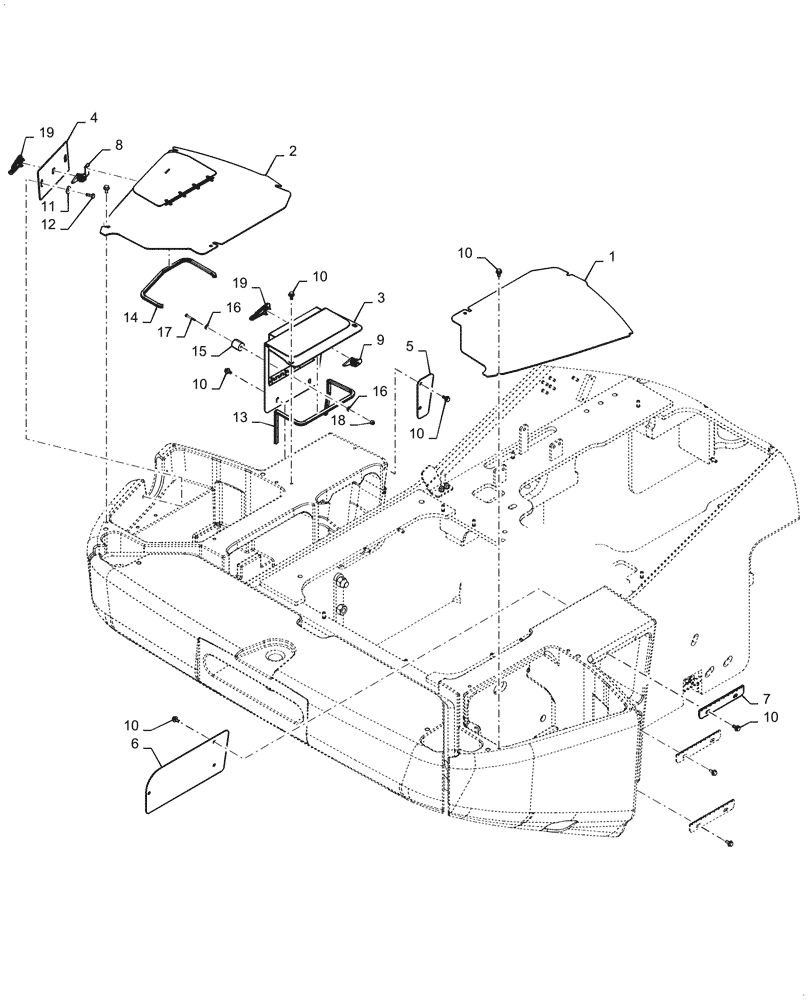

Запчасти Case 1021G (55.302.030) - BATTERY COVER (55) - ELECTRICAL SYSTEMS

1

NSS

NOT SOLD SEPARAT

Cover, RH Battery

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, LH Battery

1шт.

3

47906827

COVER ASSY

Fluid Fill

1шт.

4

47906826

MOUNTING PLATE

Latch

1шт.

5

47358885

PLATE

LH Trim

1шт.

6

47358884

PLATE

RH Trim

1шт.

7

84374044

TREAD

Counterweight

3шт.

8

84475799

LOCK

Control Access

1шт.

9

47728889

LOCK

Control Access

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

23шт.

11

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

84544962

TRIM

Fluid Fill Door Edge

1шт.

14

84591693

TRIM

Disconnect Door Edge

1шт.

15

L126483

BUMPER

Rubber

1шт.

16

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

17

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

1шт.

18

832-10406

NUT,M6 x 1, Cl 8

1шт.

19

47421621

BOOT

Cam Lock Protective

2шт.
