Запчасти Case 1021G (55.100.020[02]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

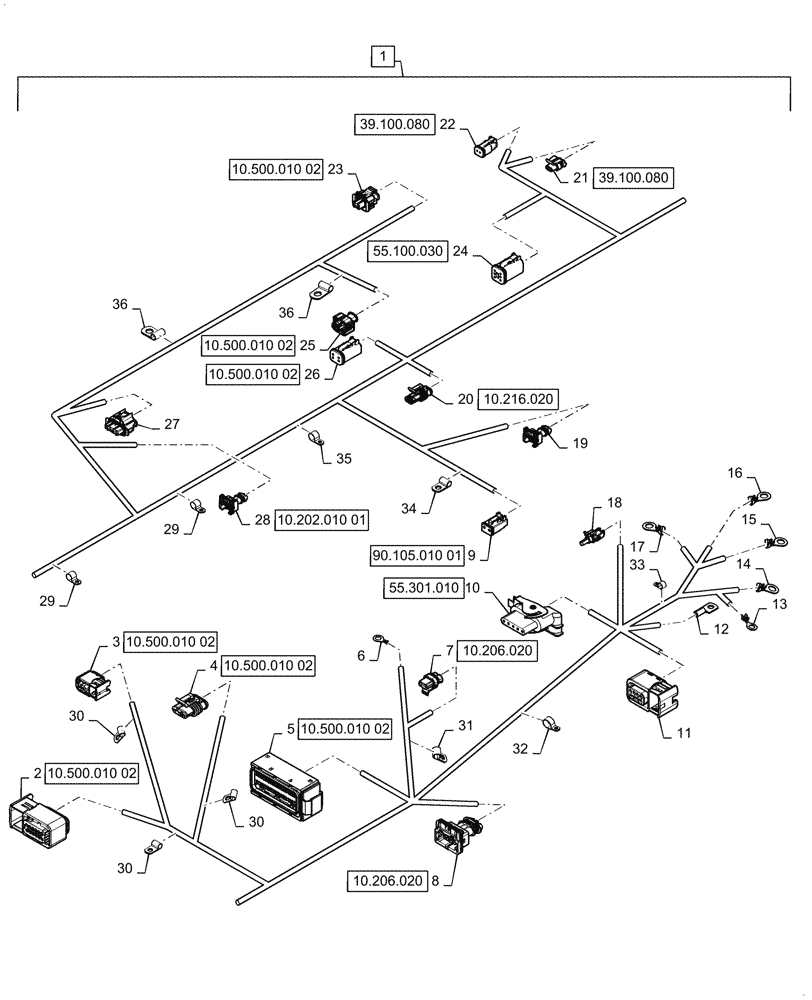

Схема запчастей Case 1021G - (55.100.020[02]) - ENGINE & REAR CHASSIS HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS
10.216.020
18
23
5
12
34
27
29
30
21
2
13
24
22
1
8
33
16
31
19
3
28
29
4
14
35
25
36
30
15
36
9
10
6
30
7
26
32
17
11
20
55.301.010
55.100.030
39.100.080
39.100.080
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
10.500.010 02
90.105.010 01
10.206.020
10.206.020
10.202.010 01

Артикул

Название

Примечание

Количество

1

47892780

WIRE HARNESS

Engine & Chassis Harness, Incl 2 - 36

1шт.

2

47421681

ELEC CONNECTOR

Denox Control Unit

1шт.

2

84152576

TERMINAL

Cavities, 2 - 4, 8 - 12

8шт.

2

84129571

PLUG

Cavities, 1, 5 - 7

4шт.

2

84567010

COVER

1шт.

3

84146685

WIRE CONNECTOR,Female, 3 Cavities

SCR Tank Heating Valve

1шт.

3

84300195

TERMINAL

Cavities, 1, 3

2шт.

3

84129571

PLUG

Cavity, 2

1шт.

4

84062580

CONNECTOR, ELEC

Inline to DEF Level & Temperature

1шт.

4

84300195

TERMINAL

3шт.

5

84595906

ELEC CONNECTOR

ECU Connector

1шт.

5

84300195

TERMINAL

96шт.

5

84300193

LOCK

Secondary Lock

1шт.

5

84596421

COVER

1шт.

6

84426120

TERMINAL

Water in Fuel Ground

1шт.

7

87679438

WIRE CONNECTOR,Female

Water Seperator Heater

1шт.

7

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

8

87709663

ELEC CONNECTOR,Female, 3 Cavities

Water in Fuel

1шт.

8

87694668

ELEC CONNECTOR

3шт.

9

87711966

PLUG

Hood Motor

1шт.

9

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

2шт.

9

87712180

ELEC CONNECTOR

1шт.

10

8602487

PLUG

Alternator

1шт.

10

84163444

TERMINAL

Cavities, 3, 4

2шт.

10

87714249

SEAL PROTECTION

Cavities, 1, 2, 5

3шт.

10

47476920

ELEC CONNECTOR

Cover

1шт.

11

84152563

ELEC CONNECTOR

Turbo Interface Wiring Harness Plug

1шт.

11

87686739

CABLE TERMINAL,Female, Tin, 2.00 - 3.00mm

Cavities, 1, 2

2шт.

11

84152576

TERMINAL

Cavities, 5, 6

2шт.

11

82035902

PLUG

Cavity, 3

1шт.

11

84129571

PLUG

Cavities, 4, 7

2шт.

12

84399576

ELEC. TERMINAL PIN,5/16" Ring, 13mm - 19mm

Alternator B+

1шт.

13

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

14

84140737

TERMINAL CONNECTOR

Ground, Engine Block

1шт.

15

84140737

TERMINAL CONNECTOR

Ground Engine Block

1шт.

16

84140737

TERMINAL CONNECTOR

Ground Engine Block

1шт.

17

84140737

TERMINAL CONNECTOR

Ground Engine Block

1шт.

18

87693744

WIRE CONNECTOR

Air Compressor Clutch

1шт.

18

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

1шт.

18

87679525

ELEC CONNECTOR,Female, 1 Cavity

1шт.

19

84607243

ELEC CONNECTOR,Female, 2 Cavities

Engine Coolant Temperature

1шт.

19

87702681

TERMINAL

2шт.

20

82012083

WIRE CONNECTOR,Female

Fuel Level

1шт.

20

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

2шт.

21

87693821

ELEC CONNECTOR,Female, 2 Cavities

Solenoid Fan Control

1шт.

21

87688852

ELEC. TERMINAL PIN

2шт.

21

87705073

STOP LOCK

1шт.

22

87695582

ELEC CONNECTOR,Female, 2 Pole

Fan Reverser Solenoid

1шт.

22

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

2шт.

22

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

22

84391159

WIRE CONNECTOR

1шт.

23

87709798

ELEC CONNECTOR,Female, 2 Cavities

UREA Dosing Valve

1шт.

23

84300195

TERMINAL

2шт.

24

87694112

ELEC CONNECTOR,Female, 6 Pole

Fan Speed Sensor Jumper

1шт.

24

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

5шт.

24

87694150

LOCKING TAB,Wedge Lock

1шт.

25

84532147

ELEC CONNECTOR,Female, 2 Cavities

Upstream of SCR Temperature Sensor

1шт.

25

84130602

TERMINAL CONNECTOR

2шт.

26

87694153

CONTACT HOUSING,Female, 4 Cavities

Inline to DEF Quality Sensor

1шт.

26

87695609

ELEC. TERMINAL PIN,Female, 0.5 - 1.2 mm2

4шт.

26

84074640

LOCKING TAB,Wedge Lock

1шт.

27

87709809

ELEC CONNECTOR

Humidity & Temperature Sensor

1шт.

27

84130602

TERMINAL CONNECTOR

4шт.

28

84607243

ELEC CONNECTOR,Female, 2 Cavities

Air Filter Switch

1шт.

28

87702681

TERMINAL

2шт.

29

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1шт.

30

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

3шт.

31

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

32

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

33

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

34

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

35

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

36

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

2шт.

Выбрано товаров: 73
