(55.047.010) - ELECTROHYDRAULIC LIFT AND TILT SENSOR

Запчасти Case 1021G (55.047.010) - ELECTROHYDRAULIC LIFT AND TILT SENSOR (55) - ELECTRICAL SYSTEMS

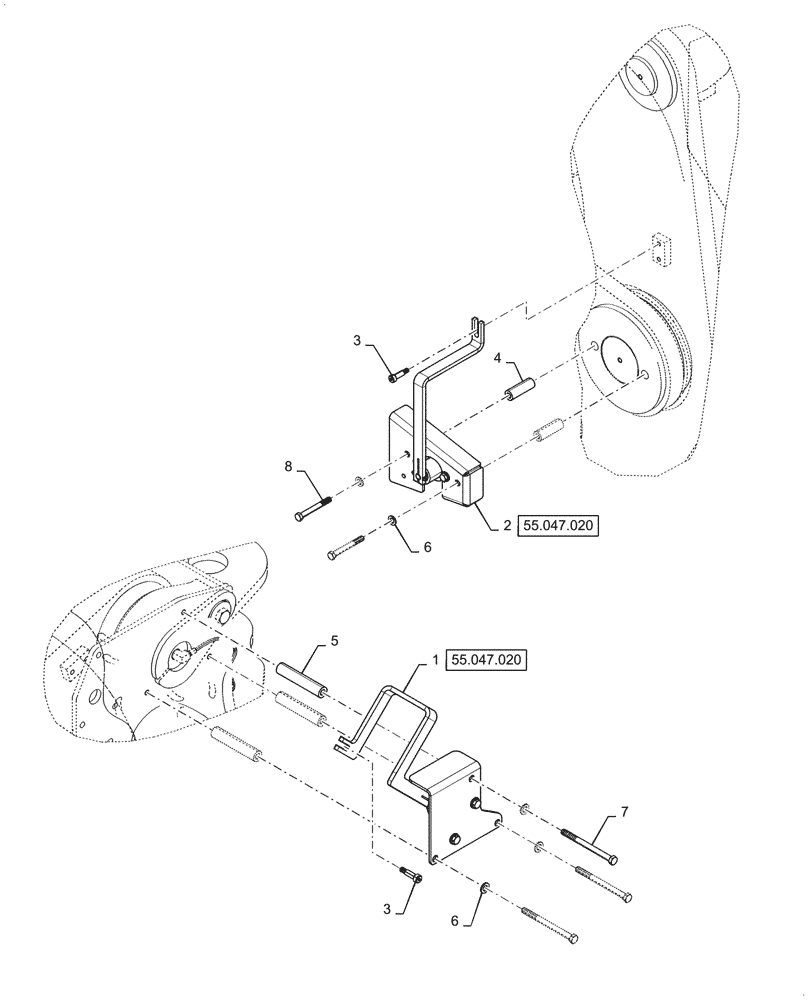

Схема запчастей Case 1021G - (55.047.010) - ELECTROHYDRAULIC LIFT AND TILT SENSOR (55) - ELECTRICAL SYSTEMS
55.047.020
7
4
6
6
3
1
3
2
5
8
55.047.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47789800

SENSOR

EH Lift

1шт.

2

47789703

SENSOR

EH Tilt

1шт.

3

561-707

HEX SOC SCREW,M10 x 34.4, 12 x 30mm shldr, Cl 12.9

2шт.

4

NSS

NOT SOLD SEPARAT

Support, Sensor

2шт.

5

NSS

NOT SOLD SEPARAT

Support, Sensor

3шт.

6

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

5шт.

7

827-12150

BOLT,Hex, M12 x 1.75 x 150mm, Cl 10.9

3шт.

8

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

2шт.

Выбрано товаров: 8
