(39.140.010) - VAR - 482059, 782895 - COUNTERWEIGHT, MOUNTING

Запчасти Case 1021G (39.140.010) - VAR - 482059, 782895 - COUNTERWEIGHT, MOUNTING (39) - FRAMES AND BALLASTING

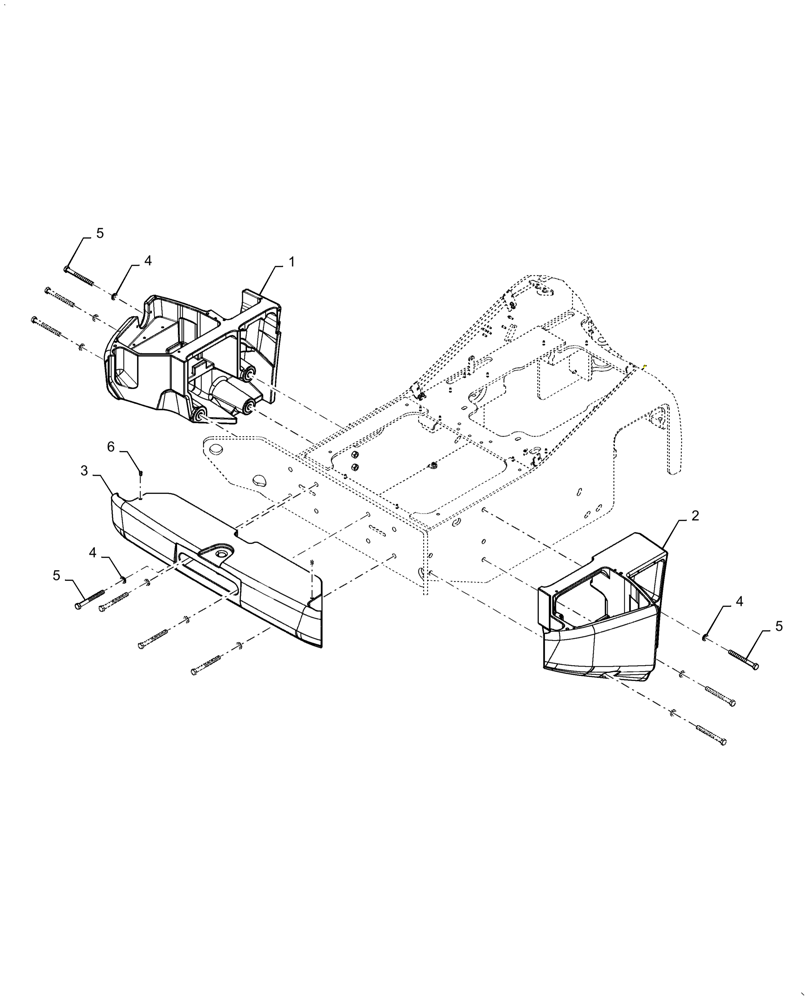

Схема запчастей Case 1021G - (39.140.010) - VAR - 482059, 782895 - COUNTERWEIGHT, MOUNTING (39) - FRAMES AND BALLASTING
5
1
4
5
2
3
4
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47895950

COUNTERWEIGHT

LH

1шт.

2

47895948

COUNTERWEIGHT

RH (1650 lb)

1шт.

3

47895942

COUNTERWEIGHT

Center (1570 lb)

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

10шт.

5

827-24230

BOLT,Hex, M24 x 3 x 230mm, Cl 10.9

10шт.

6

87308200

PLASTIC PLUG

2шт.
