(39.126.010) - COOLING FRAME SEALS

Запчасти Case 1021G (39.126.010) - COOLING FRAME SEALS (39) - FRAMES AND BALLASTING

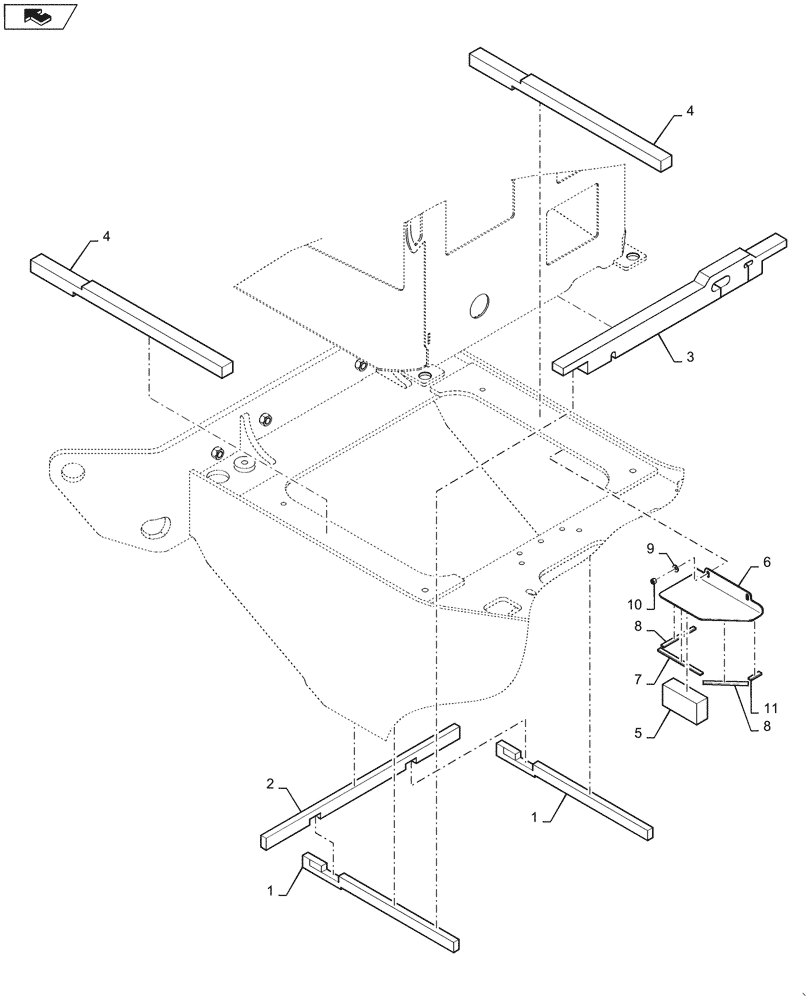

Схема запчастей Case 1021G - (39.126.010) - COOLING FRAME SEALS (39) - FRAMES AND BALLASTING
4
8
6
11
3
5
2
9
4
10
7
1
home
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84415482

SEAL

Fuel Tank, Side

2шт.

2

84489944

RUBBER SEAL,910mm L

Fuel Tank, Rear

1шт.

3

84415485

SEAL

Cooling Frame, Front

1шт.

4

84489945

RUBBER SEAL,900mm L

Cooling Frame, Side

2шт.

5

84415487

SEAL

Def Hose

1шт.

6

84415488

COVER

Fuel and Def Fill

1шт.

7

84416310

SEAL

Hose Cover

1шт.

8

84416309

SEAL

Hose Cover

2шт.

9

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

84416317

SEAL

Hose Cover

1шт.
