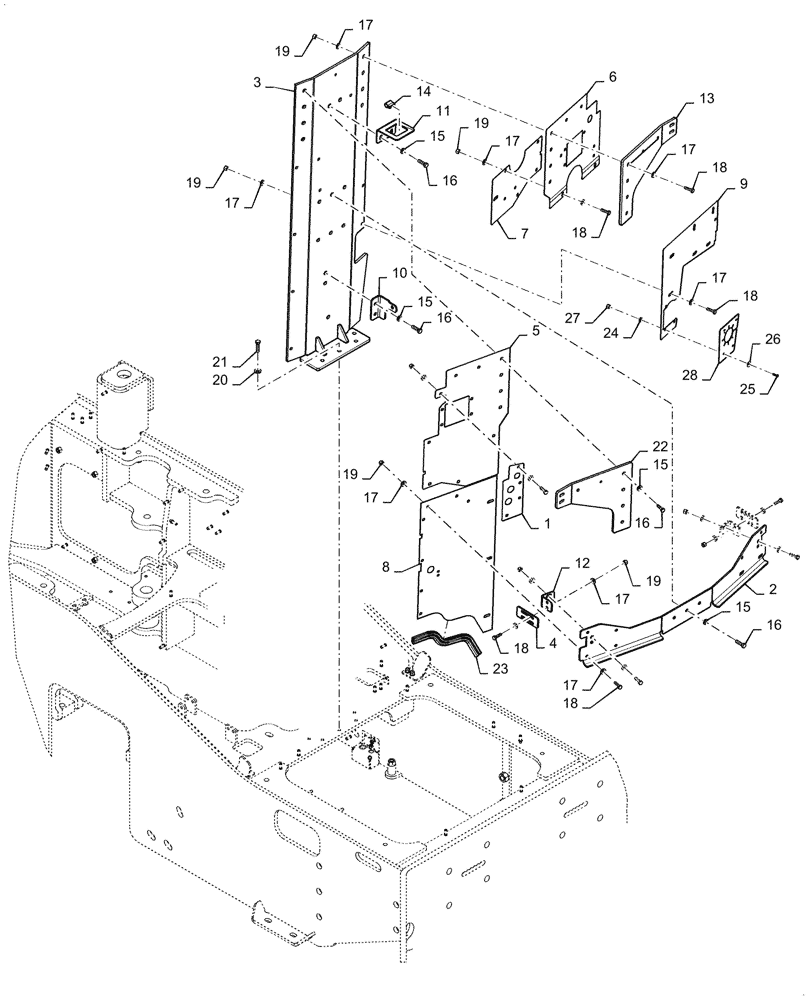

Запчасти Case 1021G (39.100.090) - ENGINE WALL (39) - FRAMES AND BALLASTING

1

47458102

PLATE

Cooler In, Axle

1шт.

2

84357760

BRACKET, SUPPORTING

Firewall, Mid

1шт.

3

47599670

SUPPORT

Firewall, Center

1шт.

4

84572205

PLATE

Door Latch

1шт.

5

47524063

PLATE

Engine Wall, Top Left

1шт.

6

47524729

PLATE

Engine Wall, Top Right

1шт.

7

47599667

PLATE

Engine Wall, Middle Right

1шт.

8

47523965

PLATE

Lower

1шт.

9

84538685

PLATE

Engine Wall, Bottom Right

1шт.

10

84357770

BRACKET, SUPPORTING

Actuator Mount

1шт.

11

84315440

MOUNTING PLATE

Actuator Mount, Top

1шт.

12

84351102

BRACKET

Door Latch, RH

1шт.

13

47535161

BRACKET

Top Hood Support, RH

1шт.

14

84315441

SEAL

Bulk Seal, 30mm

1шт.

15

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

17

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

1шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

21

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

22

47535159

BRACKET

Top Hood Support, LH

1шт.

23

90-2894T1

SEAL

Bulk Seal

1шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

25

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

26

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

27

832-10406

NUT,M6 x 1, Cl 8

1шт.

28

84539820

SEAL

Lower Radiator Tube

1шт.
