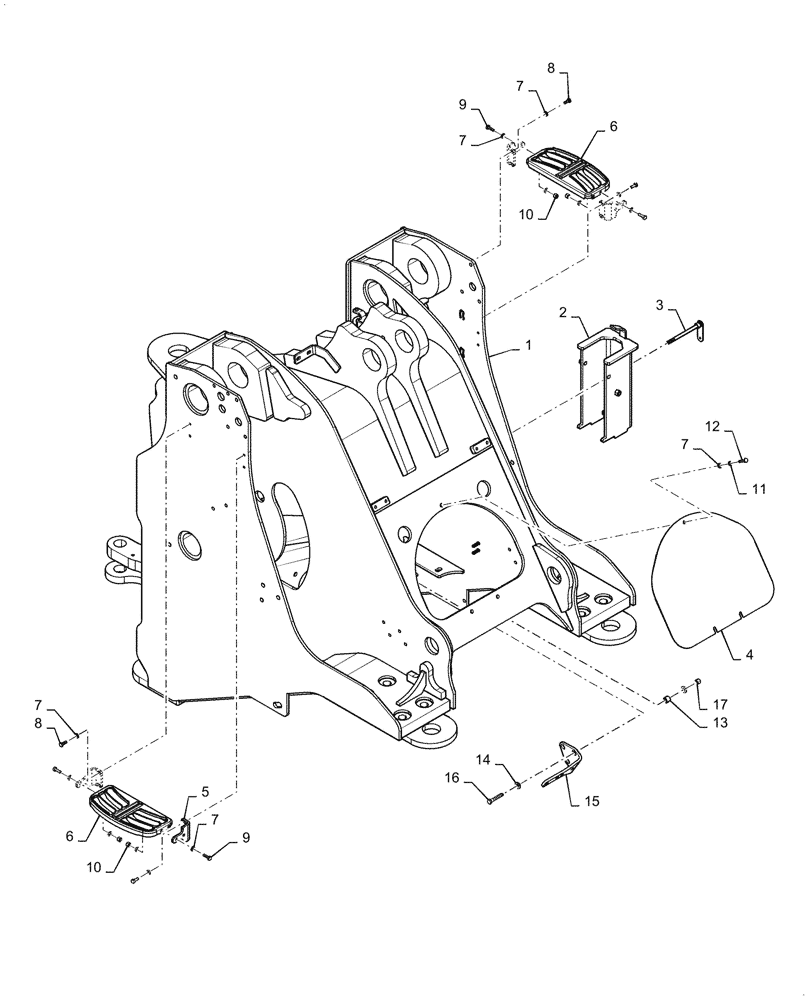

Запчасти Case 1021G (39.100.030) - FRONT CHASSIS (39) - FRAMES AND BALLASTING

1

47899200

FRAME

Front Chassis

1шт.

1

47908601

FRAME

Front Chassis

1шт.

2

84477197

CHANNEL

W/ Linkage

1шт.

3

84335024

HANDLE

W/ Linkage

1шт.

4

47908880

COVER

Valve

1шт.

5

84335479

BRACKET

Front Chassis, Step

4шт.

6

47639539

STEP

2шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

27шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

892-11010

LOCK WASHER,M10

3шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

13

86536116

SPACER

6шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

12шт.

15

84590017

BRACKET

2шт.

16

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

6шт.

17

832-10412

NUT,M12 x 1.75, Cl 8

6шт.
